BT-ASJ-40290008/CPT (F)

Products

Home   / Tractor Mounted & Drone Spraying Accessories / BT-ASJ-40290008/CPT (F)

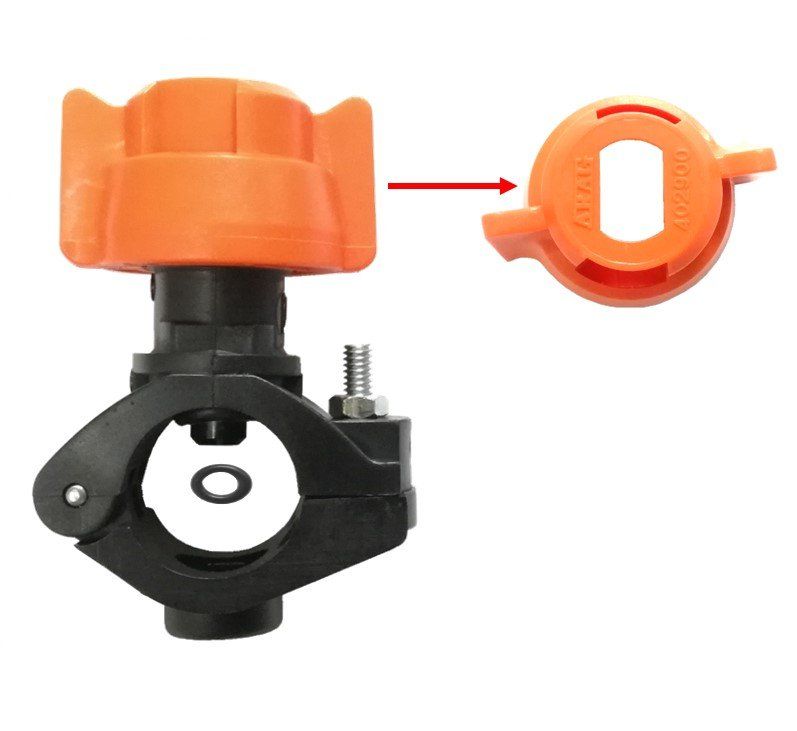

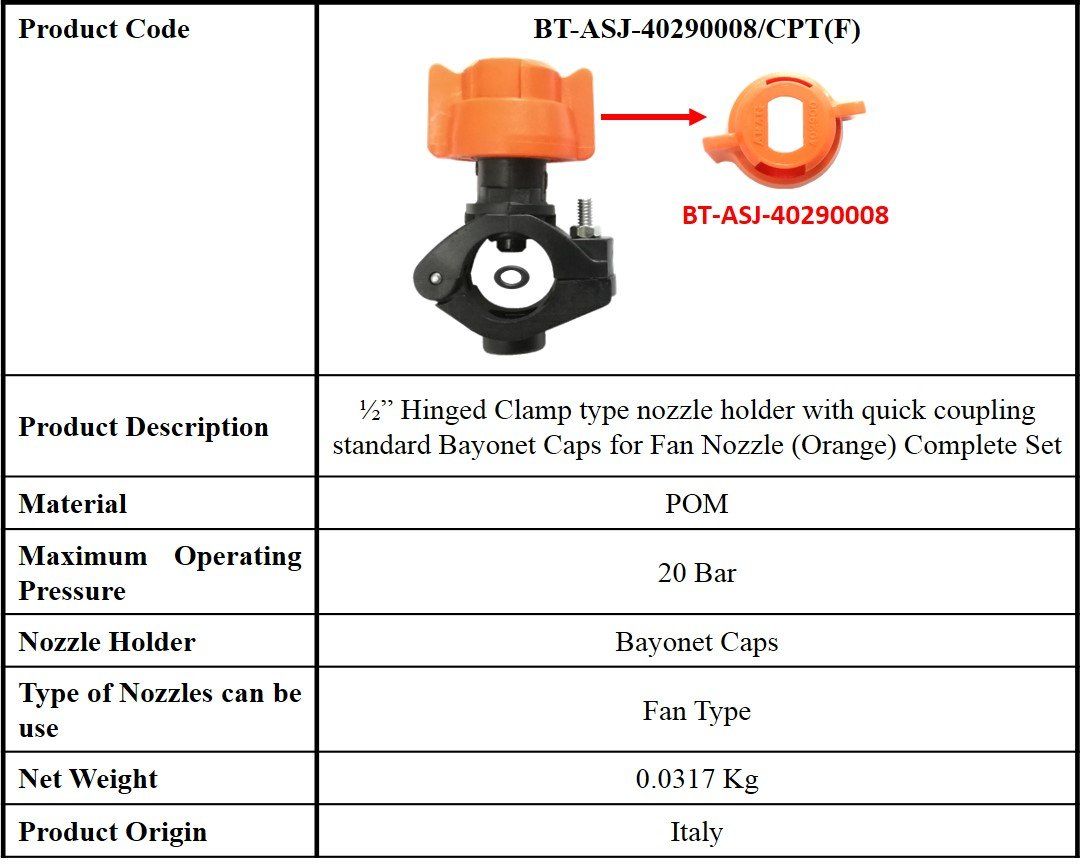

1/2" Hinged Clamp Type Nozzle Holder with Quick Coupling C/W Standard Bayonet Caps for Fan Nozzles

Share:

DESCRIPTION
DESCRIPTION

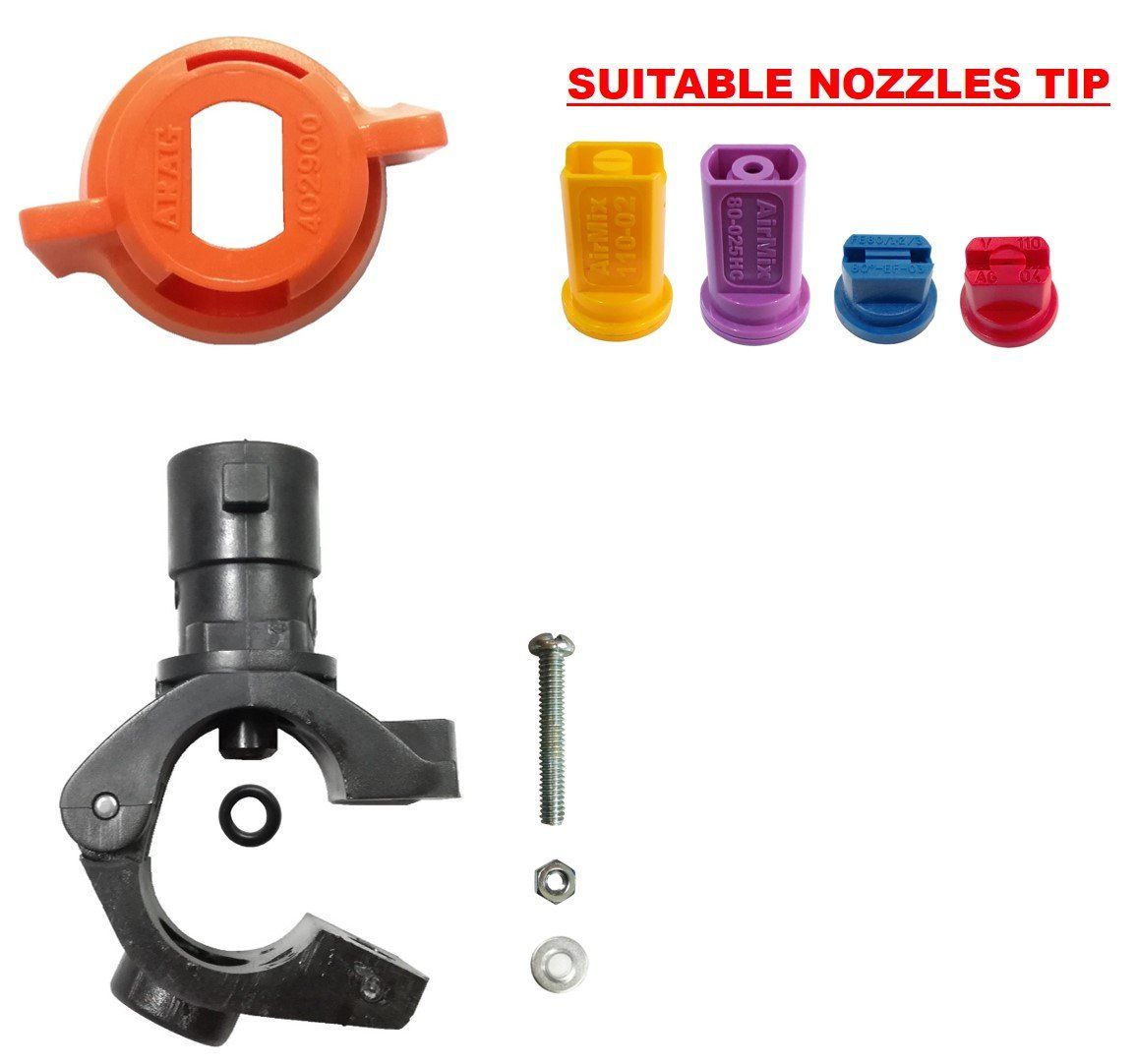

BT-ASJ-40290008/CPT(F) is an ideal design device for Tractor Mounted & Drone Spraying. It can use to adapt AirMix Fan, AirMix Hollow Cone, Standard Fan, Even Fan & other Fan type nozzles. BT-ASJ-40290008 is a Bayonet Cap for quick fitting for the nozzle.

FEATURES
FEATURES



  • ½” hinged Clamp type nozzle holder with quick coupling complete with Standard Bayonet Caps for the quick fitting nozzle.
  • Can use up to maximum pressure of 20 Bar.
  • The seal can be compressed by moving the bayonet system without exerting any substantial torsion force on the seal.
  • The bayonet system can help prevent unintentional disengagement of the spray nozzle.
  • Easy cleaning, disassembling and assembling.
  • Made from hard-wearing Polyacetal (POM), with high wear and shock resistance.

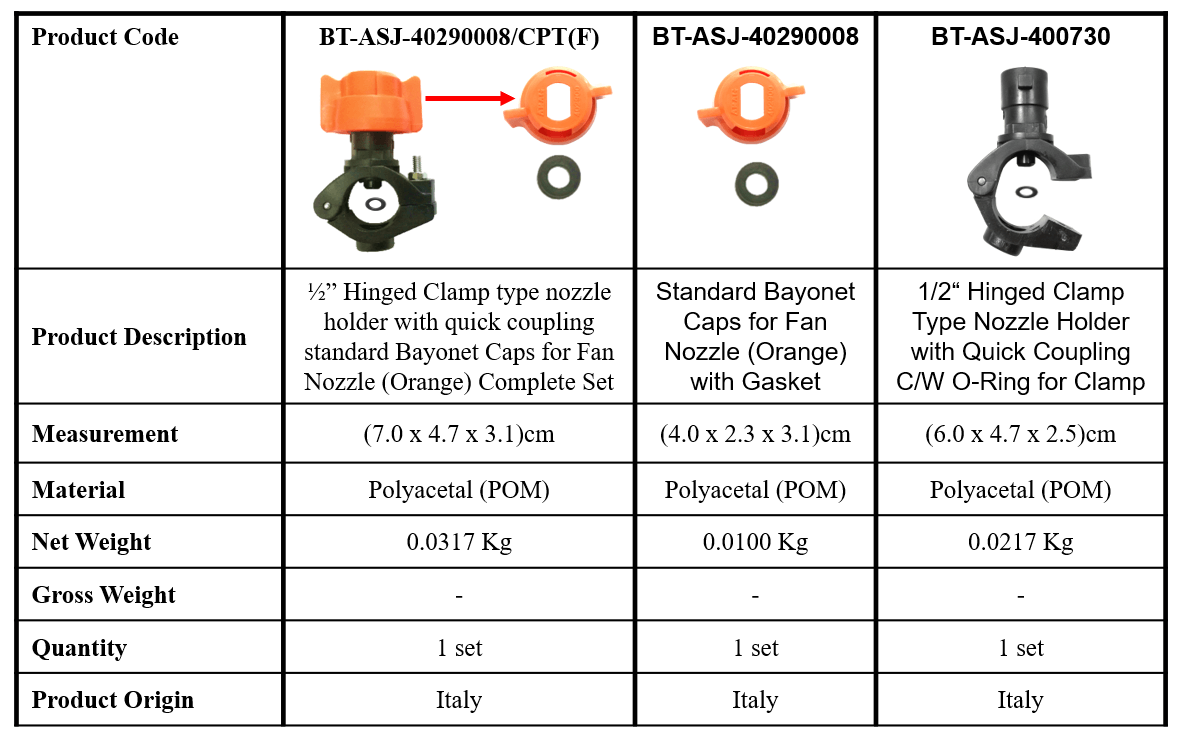

REPLACEMENT PARTS LISTS
REPLACEMENT PARTS LIST

Packing Details:

ADDITIONAL DETAILS
ADDITIONAL DETAILS
