BT-ASJ-40291703/CPT (HC)

Products

Home   / Tractor Mounted & Drone Spraying Accessories / BT-ASJ-40291703/CPT (HC)

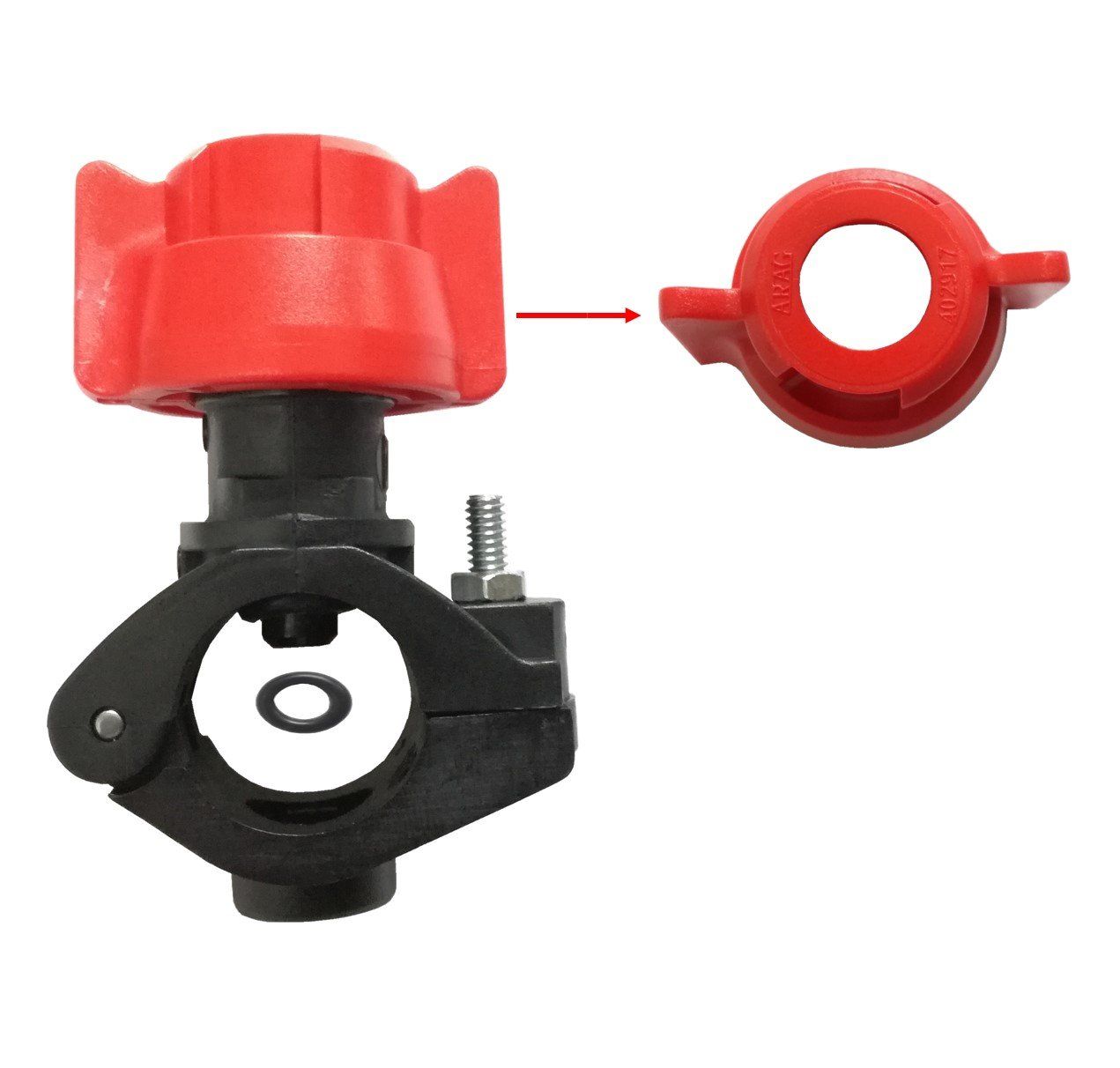

1/2" Hinged Clamp Type Nozzle Holder with Quick Coupling C/W Standard Bayonet Caps for Hollow Cone Nozzles

Share:

Website

  1

1
Shopee

Lazada

DESCRIPTION
DESCRIPTION

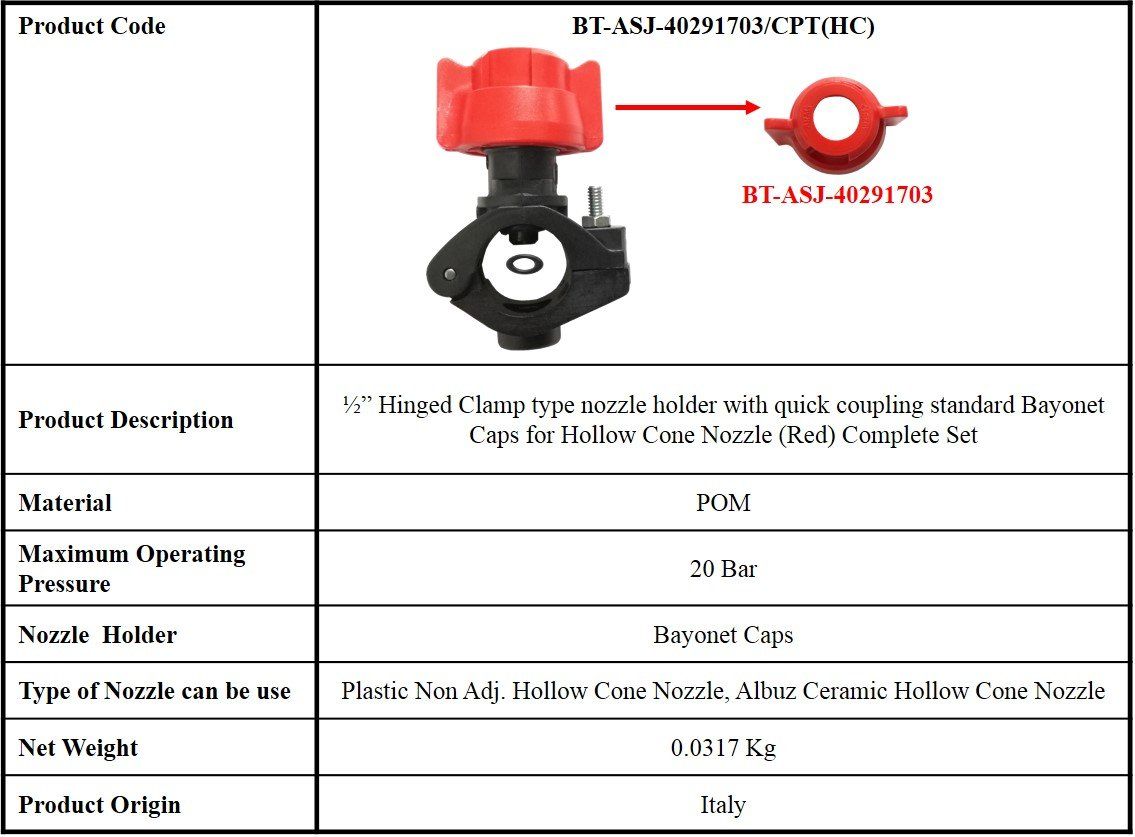

BT-ASJ-402901703/CPT(HC) is an ideal design device for Tractor Mounted & Drone Spraying. It can use to adapt Standard Non Adjustable Hollow Cone Nozzles, Albuz Ceramic Hollow Cone Nozzles and other Cone Type Nozzles. BT-ASJ-40291703 is a Bayonet Cap for quick fitting for the nozzle.

FEATURES
FEATURES

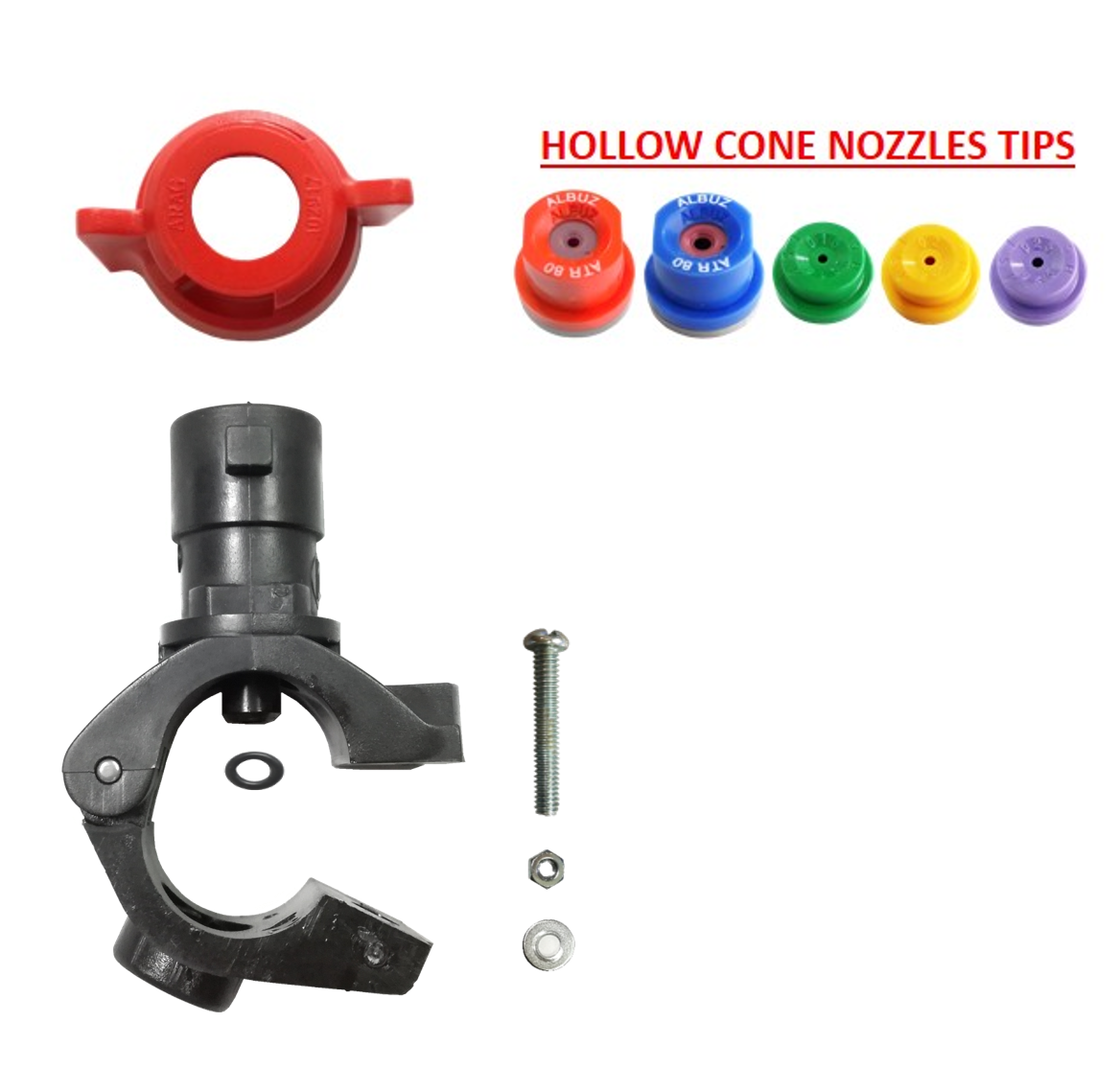

  • ½” hinged Clamp type nozzle holder with quick coupling complete with Standard Bayonet Caps for quick fitting nozzle.
  • Can use up to maximum pressure 20 Bar.
  • The seal can be compressed by moving the bayonet system without exerting any substantial torsion force on the seal.
  • The bayonet system can help prevent unintentional disengagement of the spray nozzle.
  • Easy cleaning, disassembling, and assembling.
  • Made from hard-wearing Polyacetal (POM), with high wear and shock resistance.

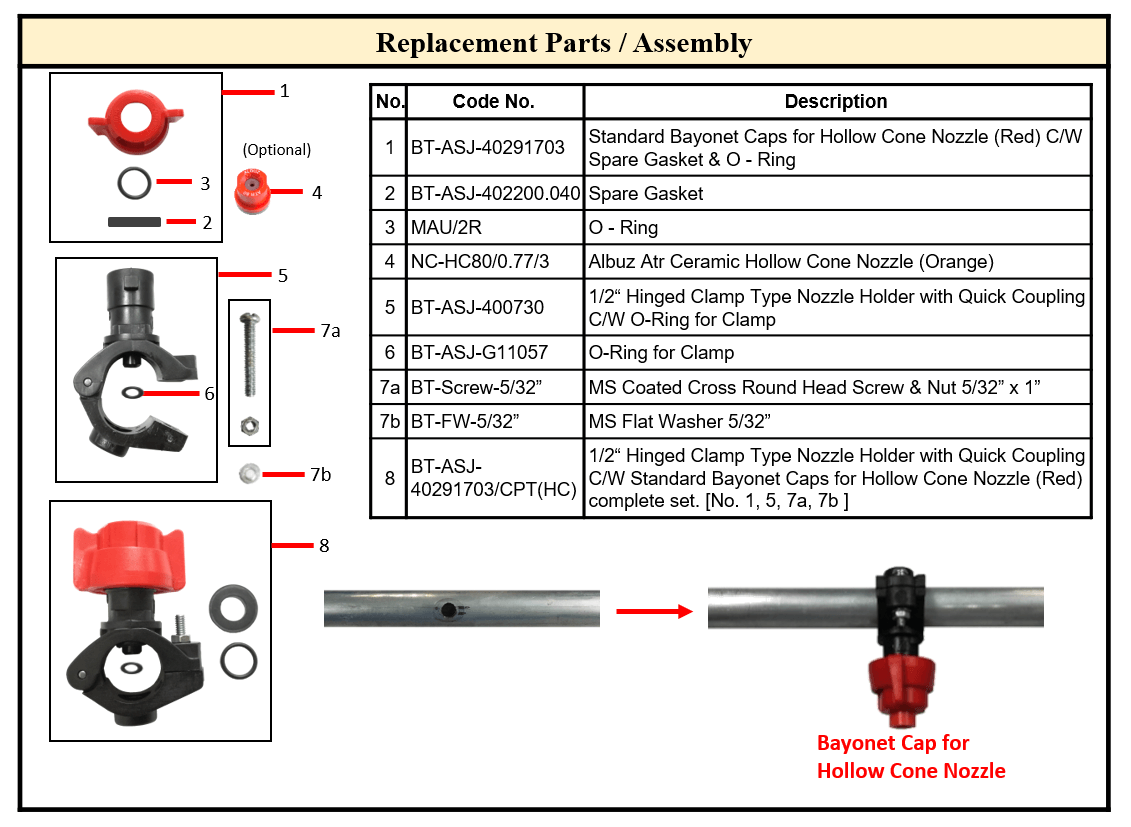

REPLACEMENT PARTS LISTS

PACKING DETAILS

REPLACEMENT PARTS LIST

PACKING DETAILS
