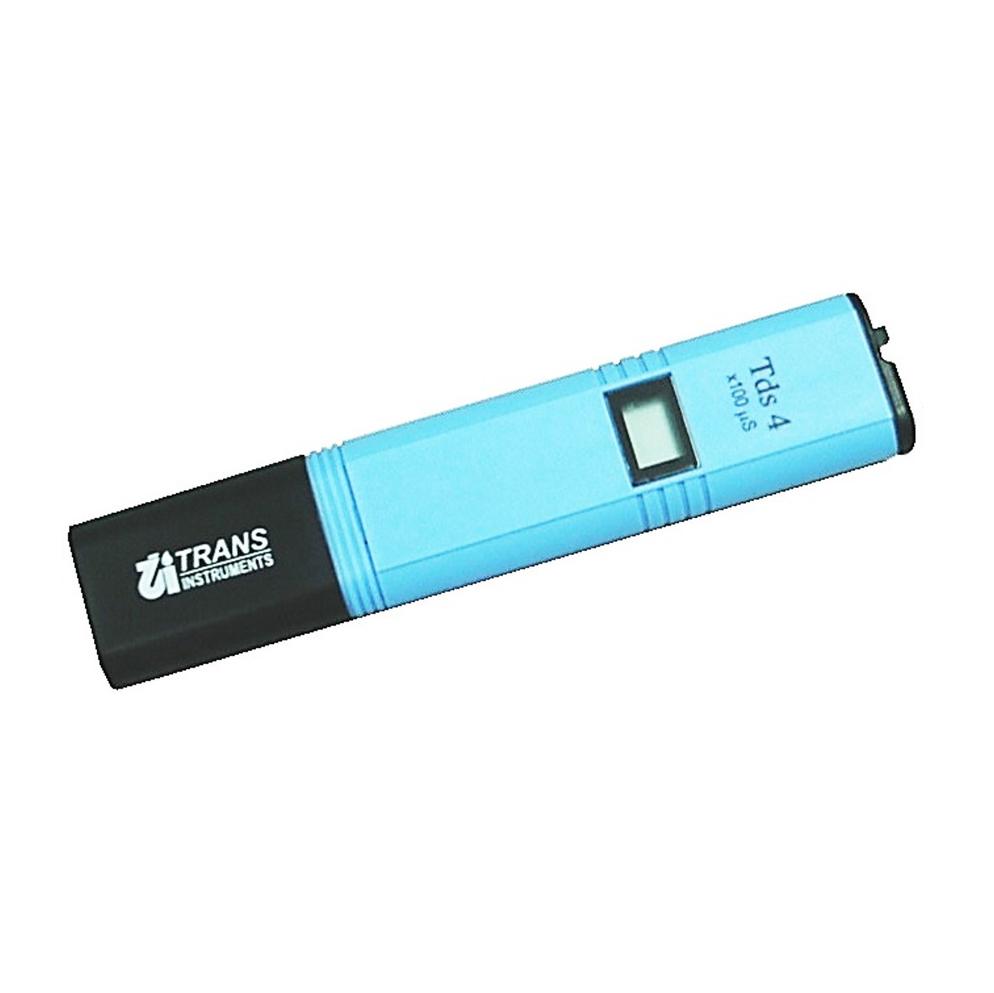

EC Conductivity Meter
Conductivity Meter
Product code:
MW/EC METER
Product code:
MW/EC METER
Range:
100 ~ 19900
Range:
100 ~ 19900
Model:
TDS-4
Model:
TDS-4
Resolution:
1 x 100 µs
Resolution:
1 x 100 µs
Range:
100 ~ 19900
Range:
100 ~ 19900
Accuracy:
+/- 0.2% full scale
Battery:
4 x 1.5 V button cell (A 76 equiv)
Battery:
4 x 1.5 V button cell (A 76 equiv)
Battery life:
Approx. 100 hours
Battery life:
Approx. 100 hours
Operating Temperature:
0°C - 50°C
Operating Temperature:
0°C - 50°C
Size:
(15.0 * 3.2 * 1.5) cm
Size:
(15.0 * 3.2 * 1.5) cm
Place of Origin:
Italy
Place of Origin:
Italy
Net Weight:
0.060 kg
Net Weight:
0.060 kg
Share:
DESCRIPTION

It is commonly used in hydroponics, aquaculture, and freshwater systems to monitor the number of nutrients, salts, or impurities in the water.



  • Simple and Easy to use
  • Accuracy and effective
  • Easy to follow calibration instruction
  • Durable and lasting

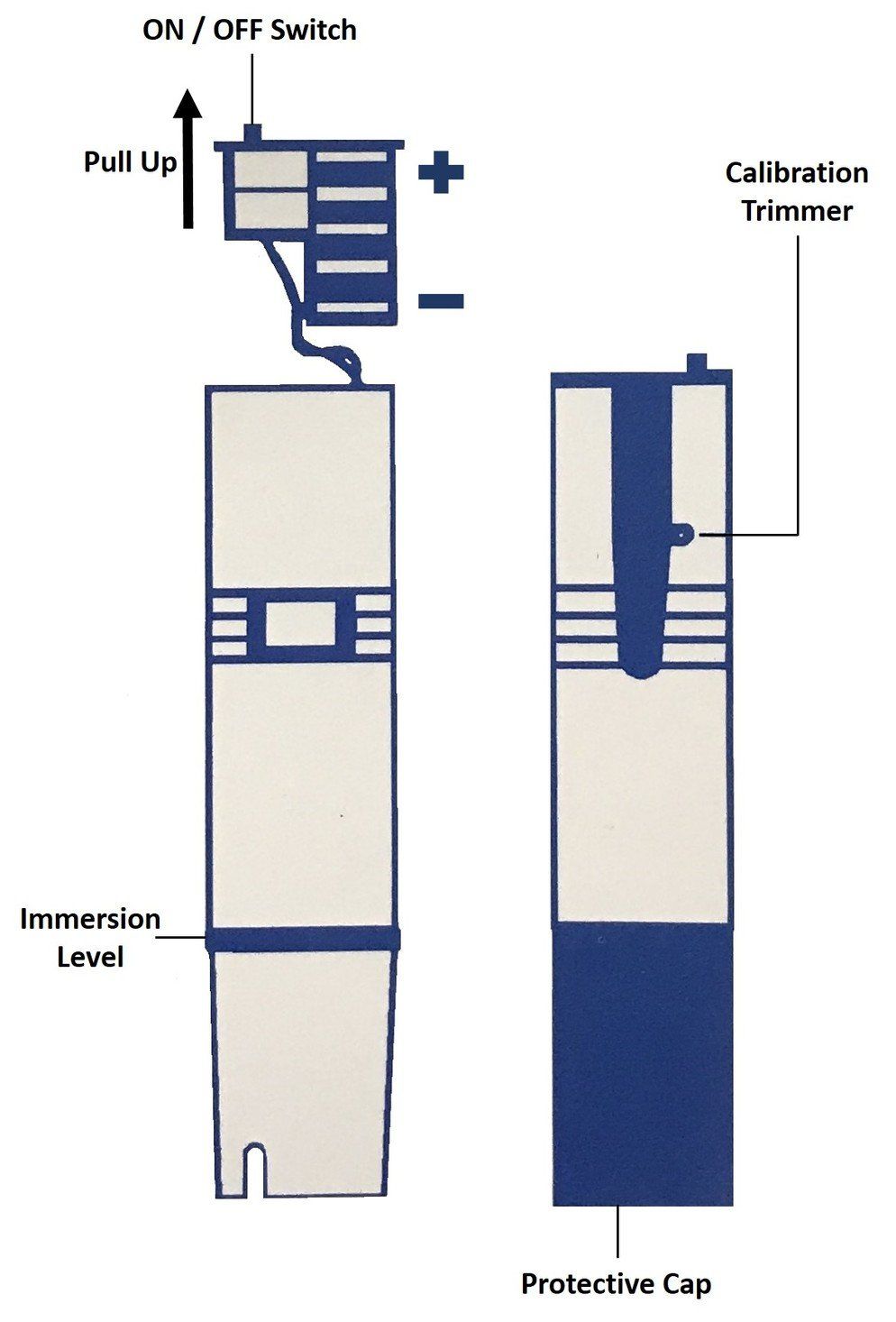

Operating Instruction:



  1. Remove the protective cap from the bottom.
  2. To switch on the unit, slide the ‘ON/OFF" switch located on top of the tester to ‘ON’.
  3. Dip tester into sample solution up to the immersion level.
  4. Stir gently to remove bubbles and wait for 2 minutes so as to allow a full temperature compensation before readout.
  5. Multiply reading according to the resolution.
  6. Always rinse with distilled water, and blot dry before and after each test.
  7. Switch off the tester and replace the protective cap before storing away.
