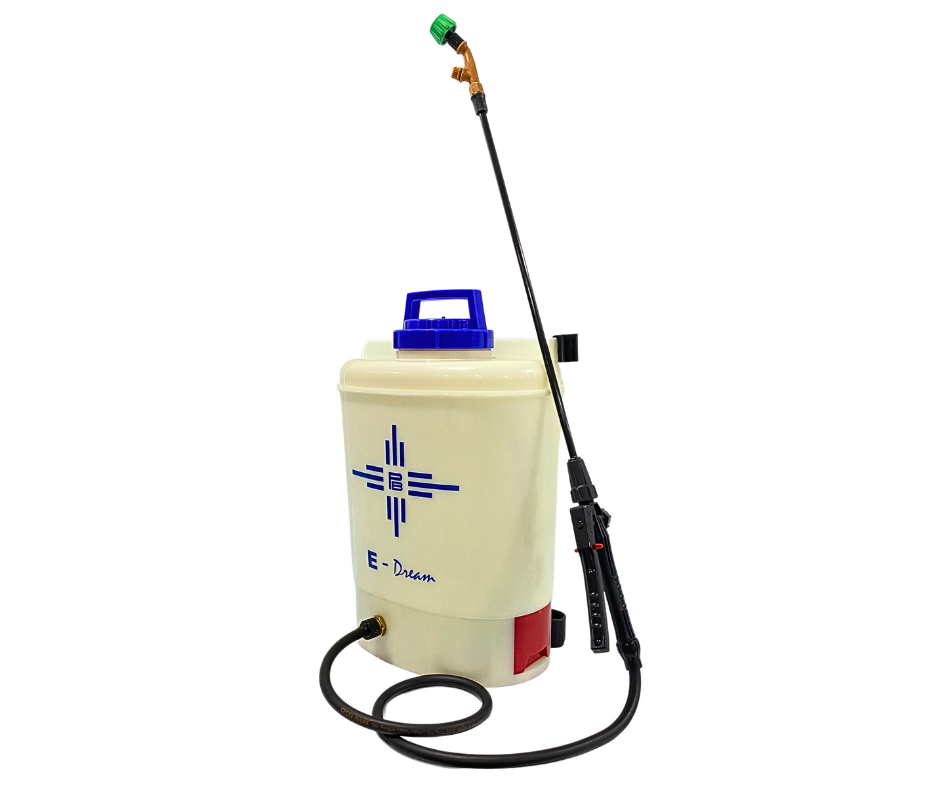

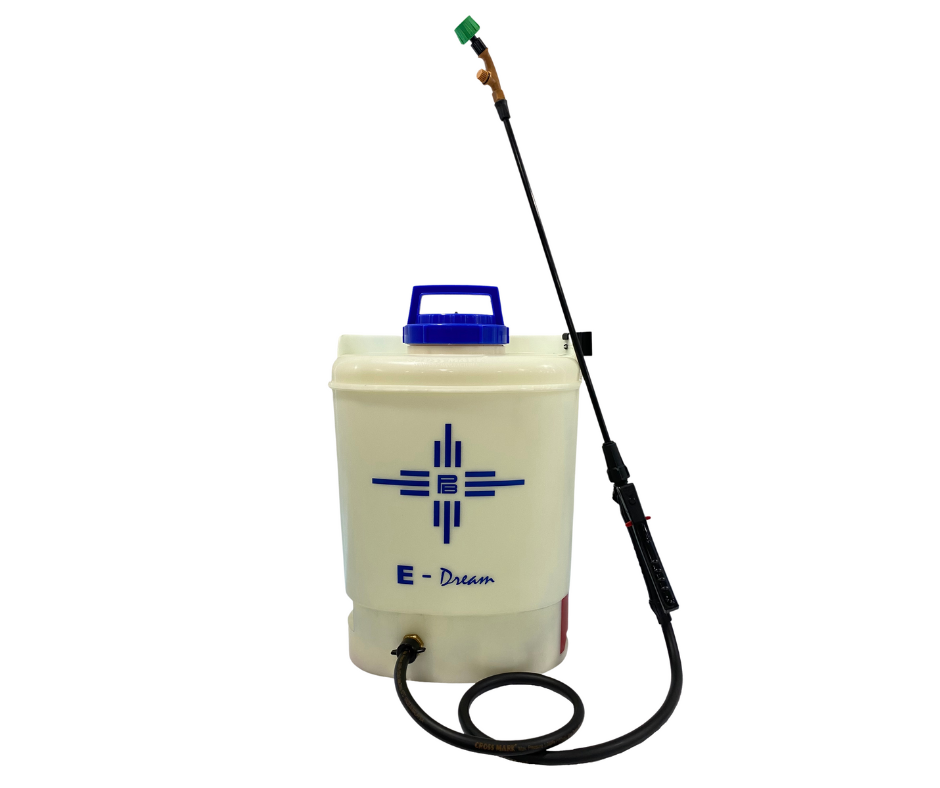

This Battery Sprayer is designed for spraying of liquid form Insecticides, Fungicides & Herbicides and more require Sophisticated spraying media. It can easily help users to improve the spraying quality and increase their spraying productivity more than 30%.

• E - Dream: Suitable for Medium Volume Spray to High Volume Spray (225 L/Ha - 450 L/Ha)
• E - Dream (Pro) : Suitable for Very Low Volume Spray to Low Volume Spray (30 L/Ha - 150 L/Ha)

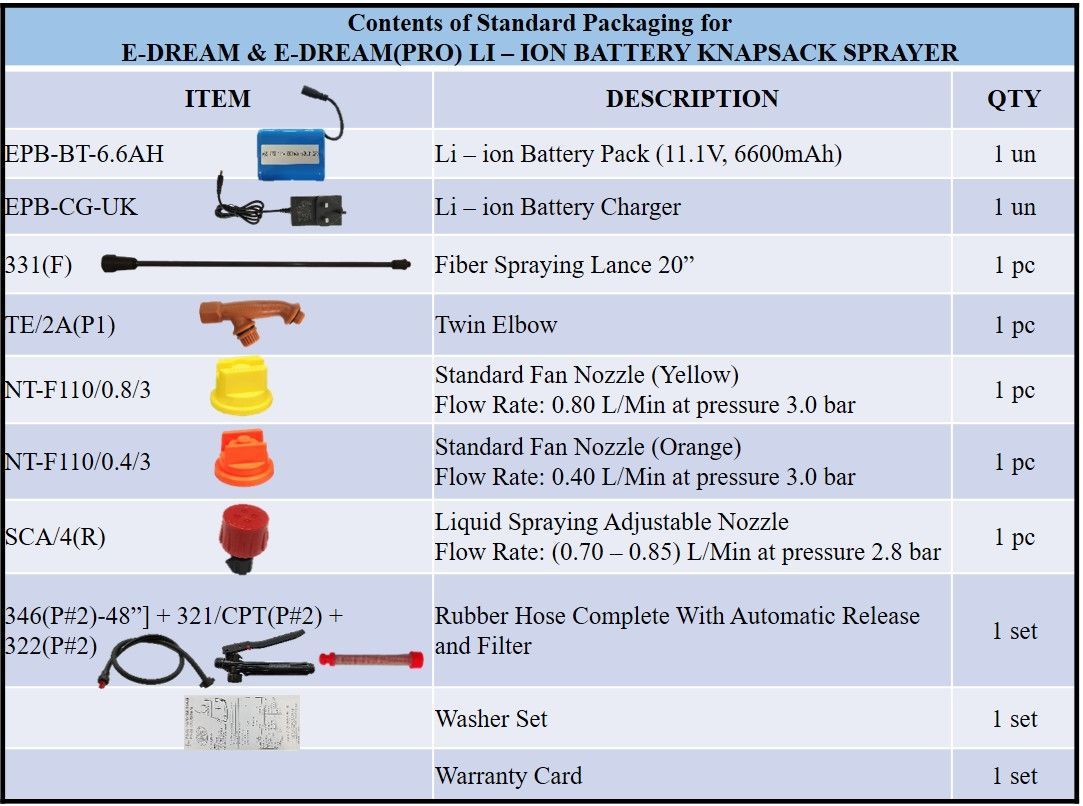

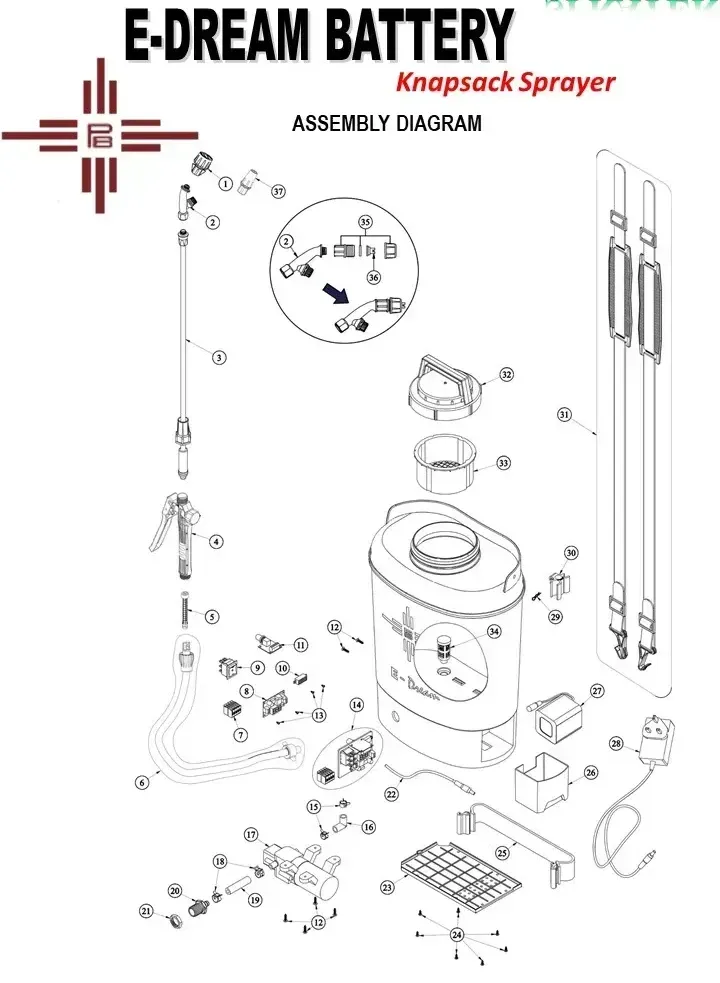

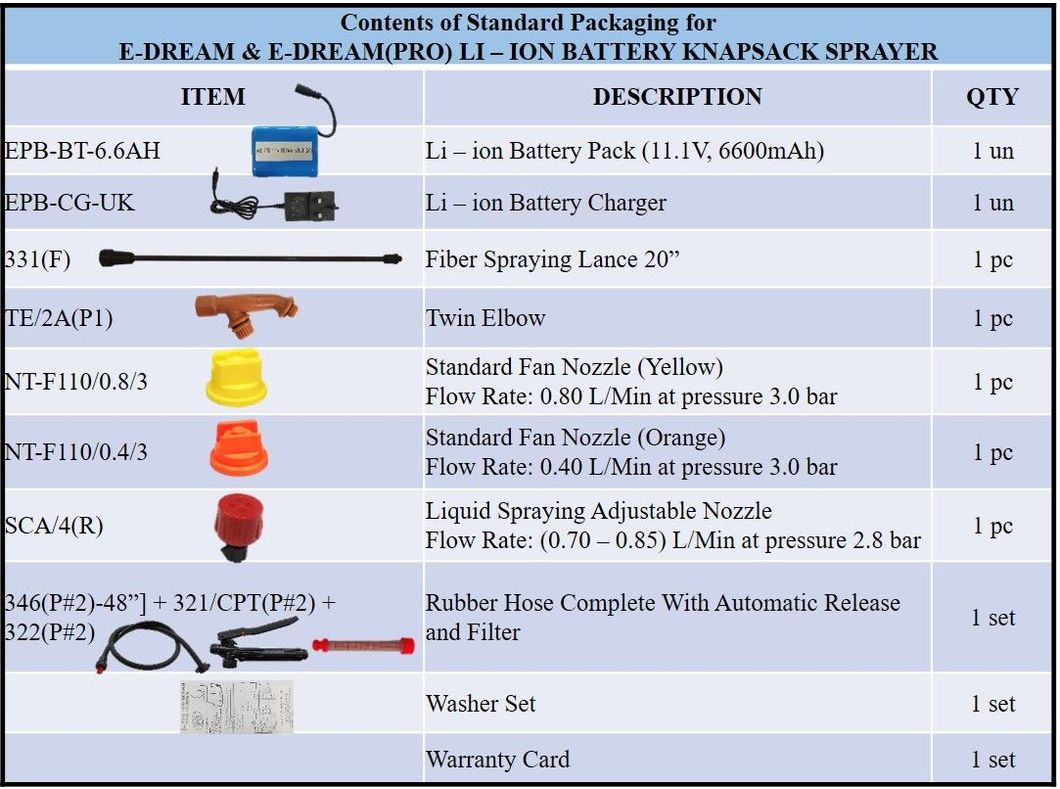

1. The lance [331(F)] with twin elbow [TE/2A(P1)] and SCA/4 nozzle are screwed onto the automatic release completed [321/CPT(P#2)] with hose [346/(P#2)-48”] and connected to sprayer.
2. Check all the joints are tightened properly with washer to prevent leaking.
3. Fill the chemical mixture into the sprayer tank through the strainer [303(50#)] in order to filtrate the dirt and sediments. To avoid overflow.
4. Shoulder straps (337) are fully adjustable to ensure operator’s comfort in fieldwork.
5. To carry the sprayer, the shoulder strap hook (339P) hooked on the stand guard (304).

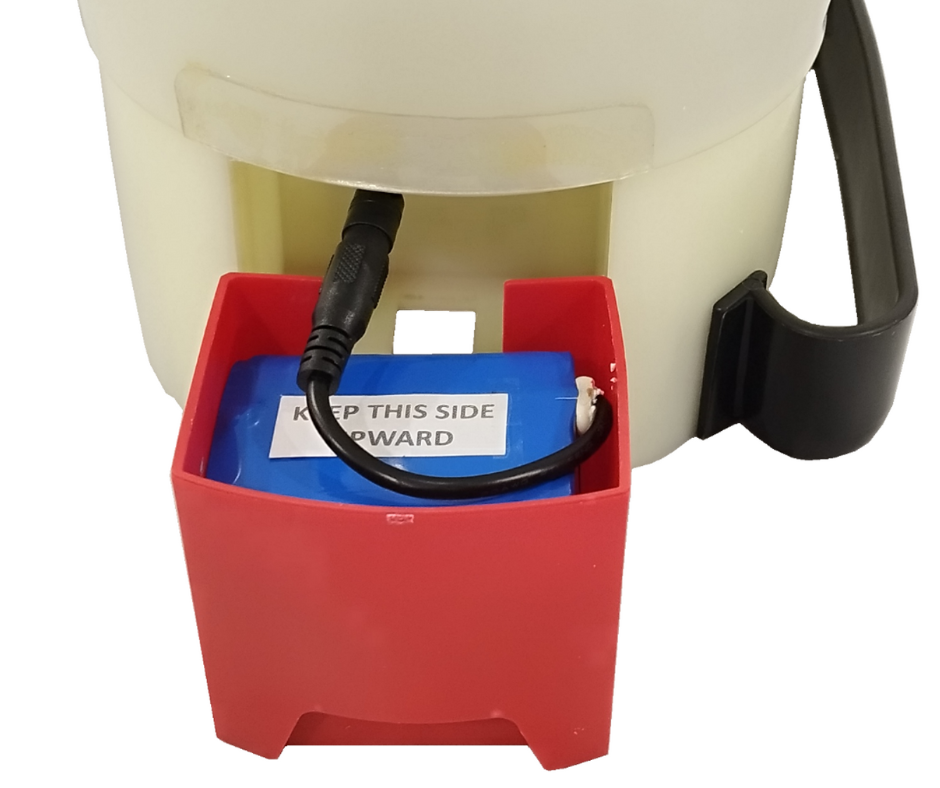

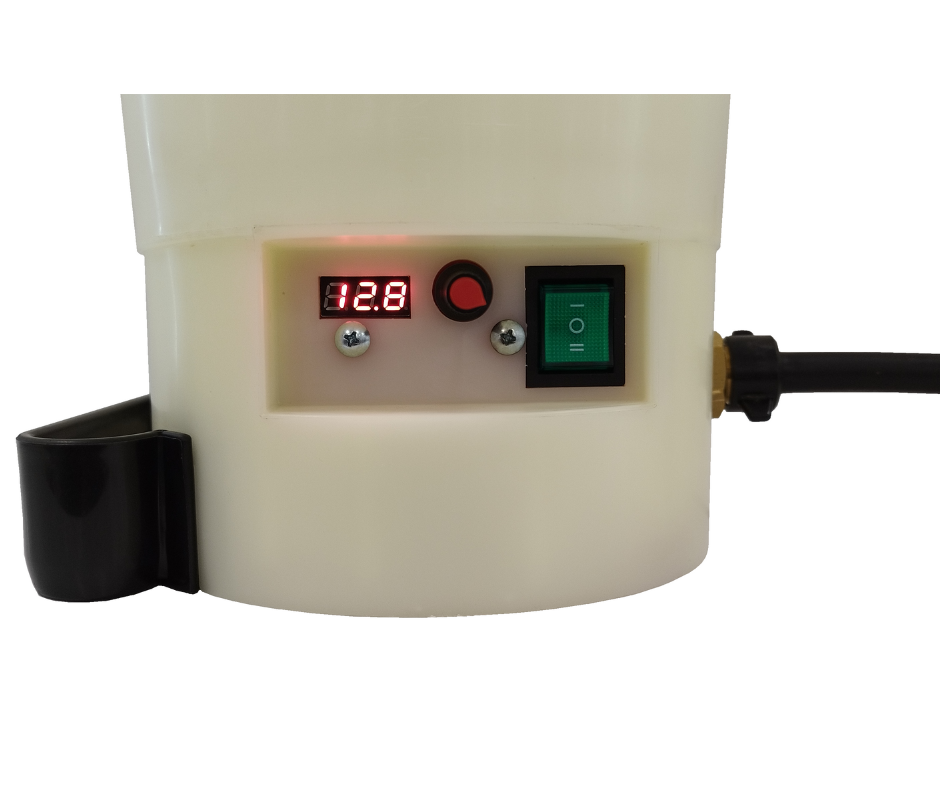

6. Rocket Switch (EPB-EC02), i) Press down (=), power on, then adjust the Governor Switch (EPB-EC03) to control the flow as you needed. ii) Press up (-), power on, the power is fixed and the flow is dependent on type of nozzle use [Recommended flow rate between 0.4 L/Min – 0.8 L/Min]. iii) To off the power, press back to (0). Attention: To save battery power, please to disconnect or take out the battery when storage. The Volmeter is off to confirm the battery disconnected.
7. The Volmeter (EPB-EC05) show the voltage reading. The spraying power will stop upon the reading of Volmeter (EPB-EC05)shown below 10.0V.
8. Before on the power to start the Water Pump (EPB-WP-2.6L), must squeeze the Automatic Release [321/CPT(P#2)] or make sure the discharge line is open allowing trapped air to escape thus avoiding the potential of Air lock.
