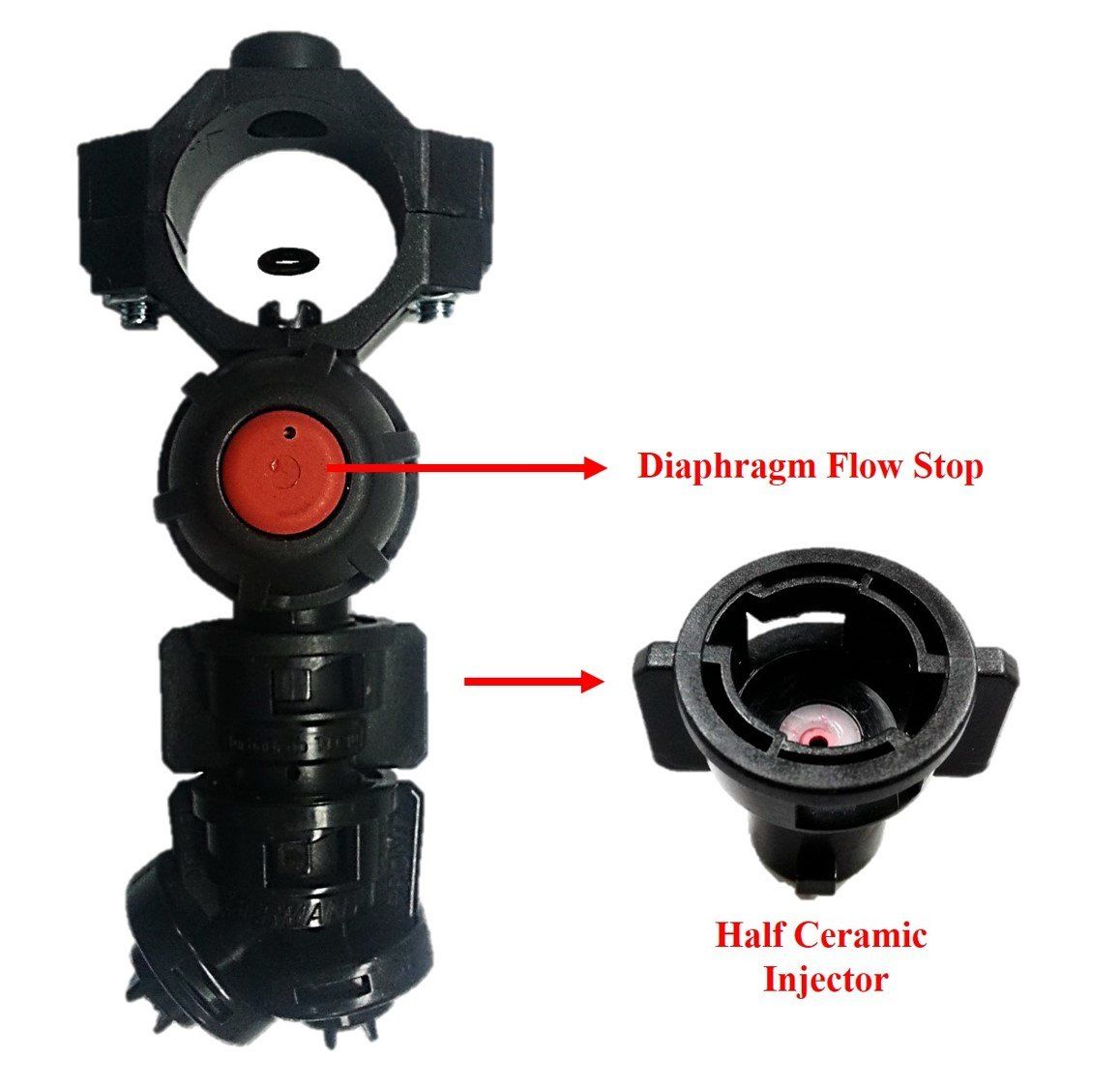

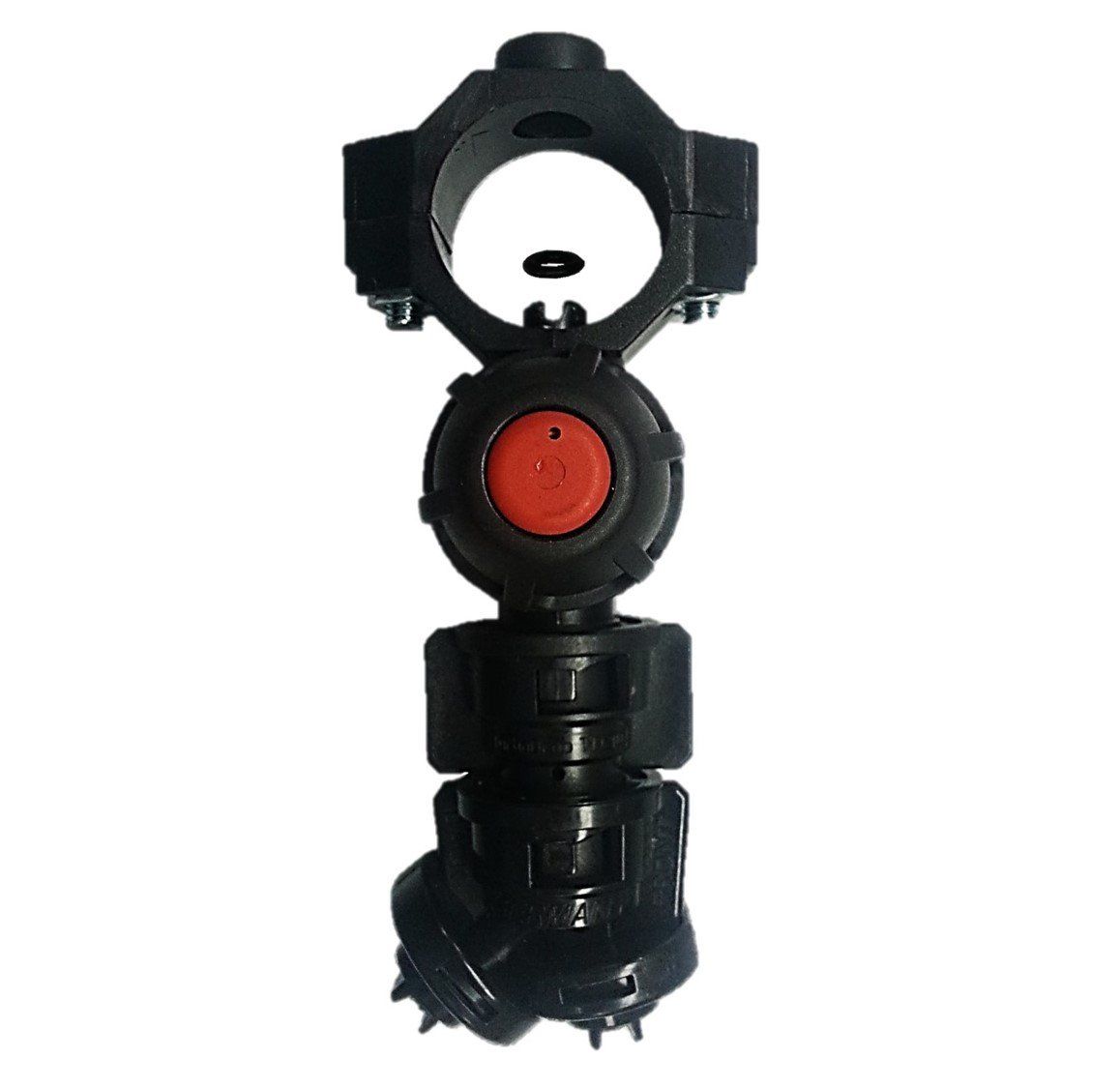

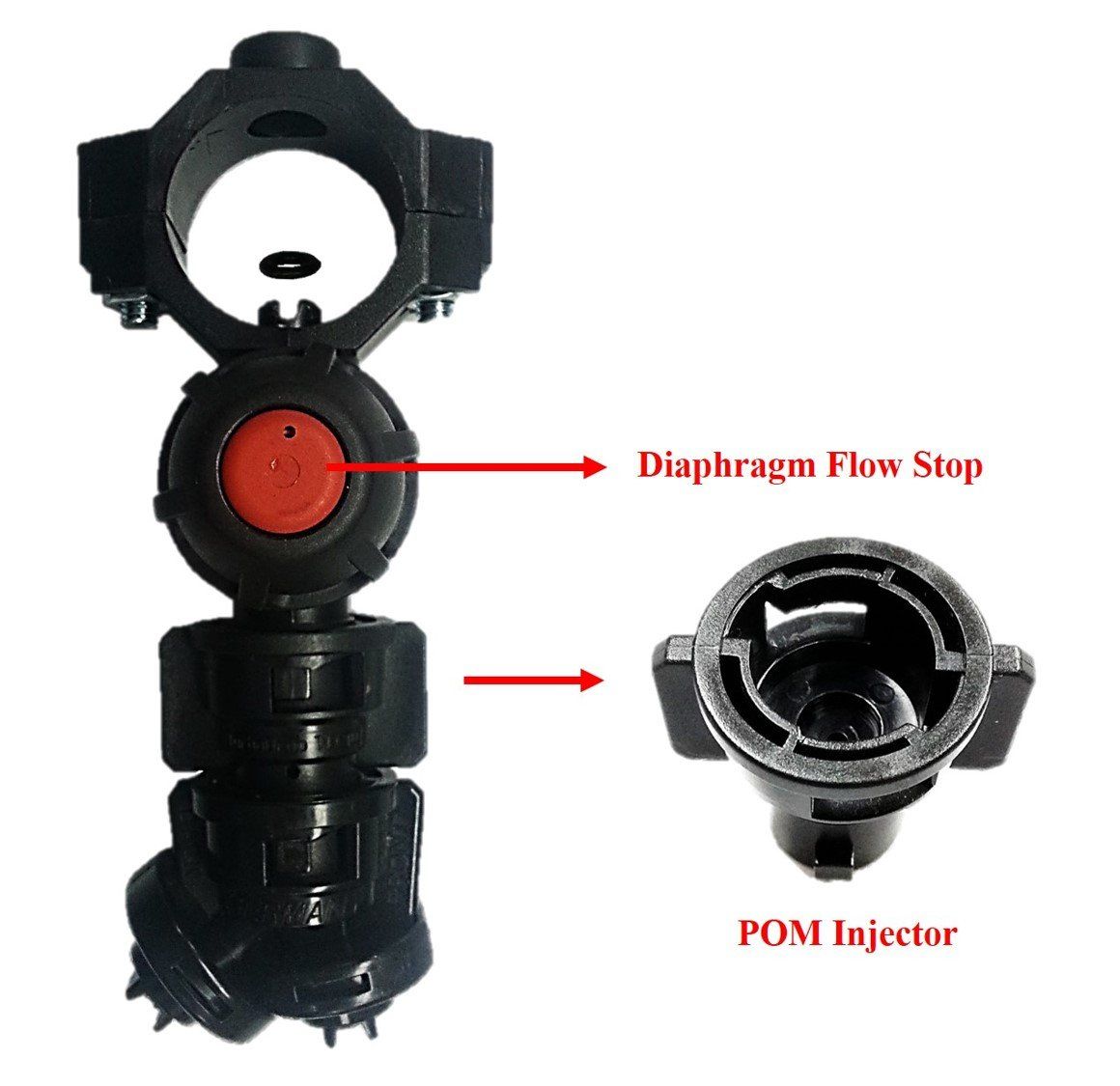

TurboDrop TD-ADF 110-10 With Diaphragm Check Valve is an advanced design device for Tractor Mounted & Drone Spraying. The Diaphragm Check Valve allows flow in one direction and automatically prevents backflow (reverse flow) when fluid in the line reverses direction. Asymmetric ADF- double Flat Fan cap allows assembling two individual nozzles at different angles in only one cap. This offers the possibility of combining different nozzle types, sizes, or spray patterns for one application. The asymmetric orientation of the two tips allows individual adjustments or alternating positioning of the nozzle tips, offering a wide range of solutions for difficult spray tasks. It can use to adapt AirMix Fan, AirMix Hollow Cone, Standard Fan, Even Fan & other nozzles to meet users spraying requirements.

• With Diaphragm Check Valve to reduce wastage of chemicals solution and save chemicals cost.

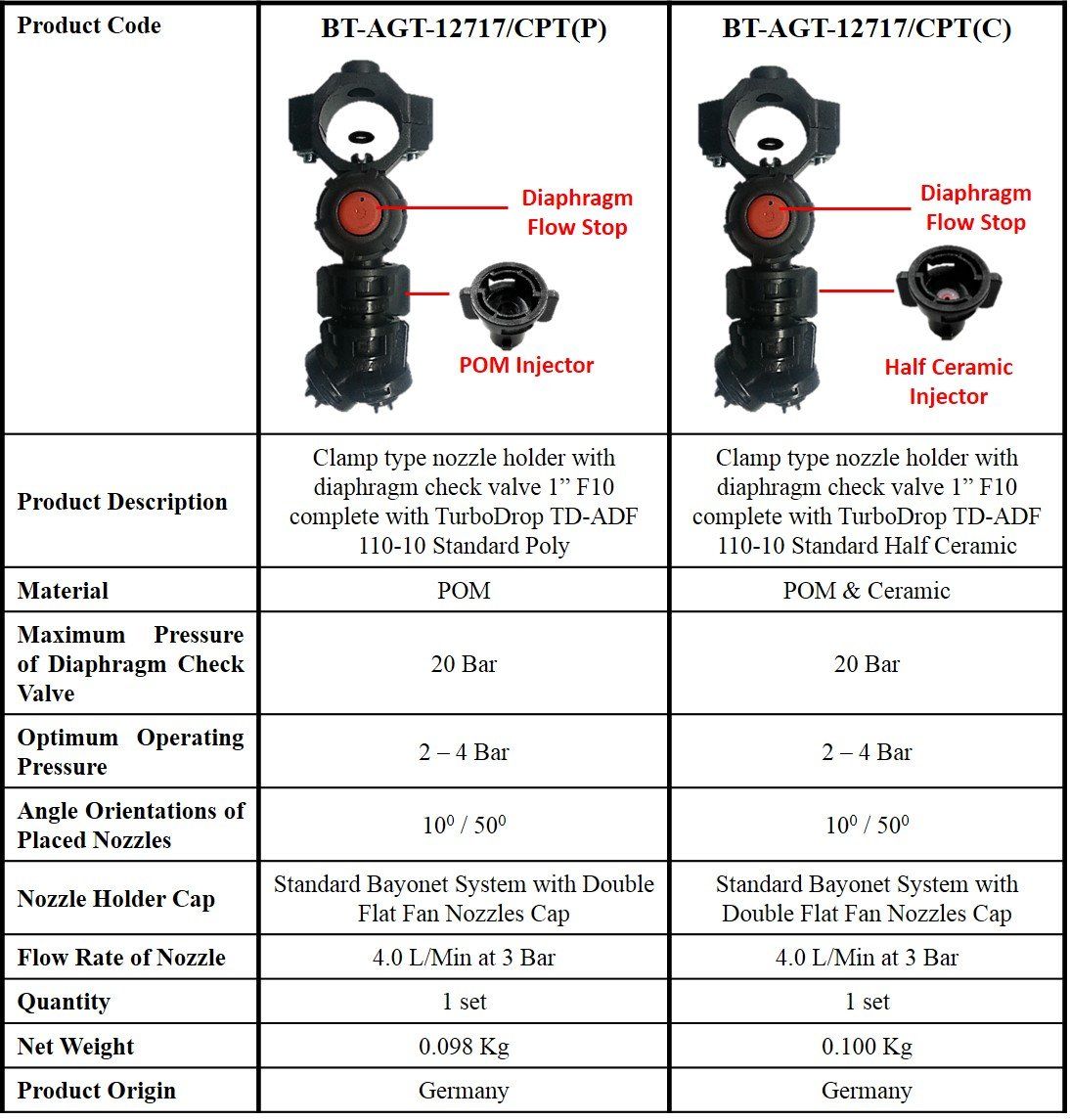

• Maximum 20 Bar working pressure of Diaphragm Check Valve.
• Asymmetric Double Cap is short, compact desi   gn and made from hard-wearing plastic POM.
• Slimmer than other comparable double flat fan nozzles.
• Separates slides for each nozzle allows individual exchange of each nozzle tip, easy to clean.
• Nozzles are placed in a 10 degree / 50 degree Orientation, this combination of spray patterns has been successfully proven by the TurboDrop HiSpeed nozzles.
• Good drift control an excellent coverage of vertical and angular targets.
• Optimum pressure: 2-4 bar
• Application speeds from 6 - 15 km/h or more.

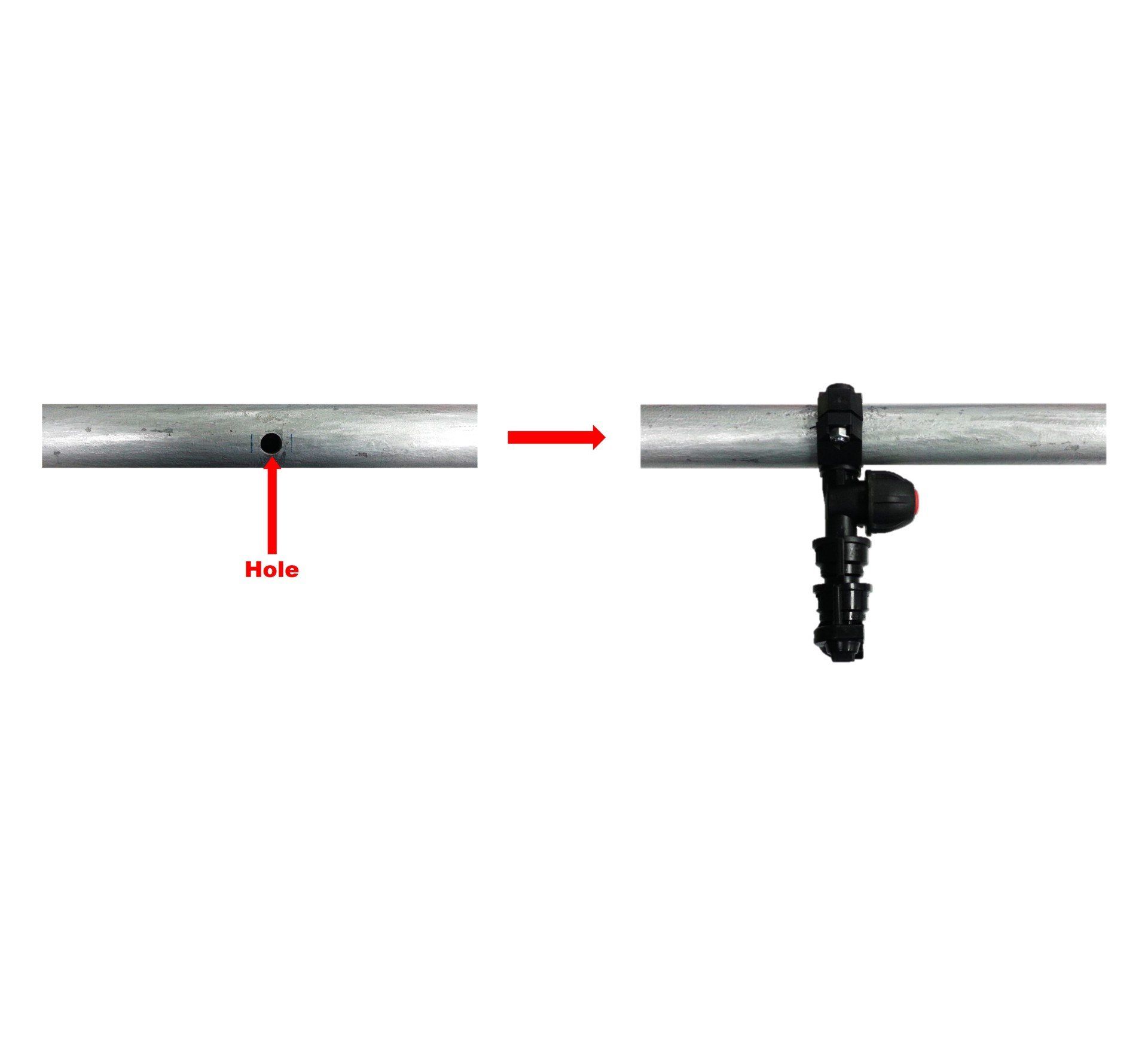

• Fits on all nozzle holders with standard bayonet system.
