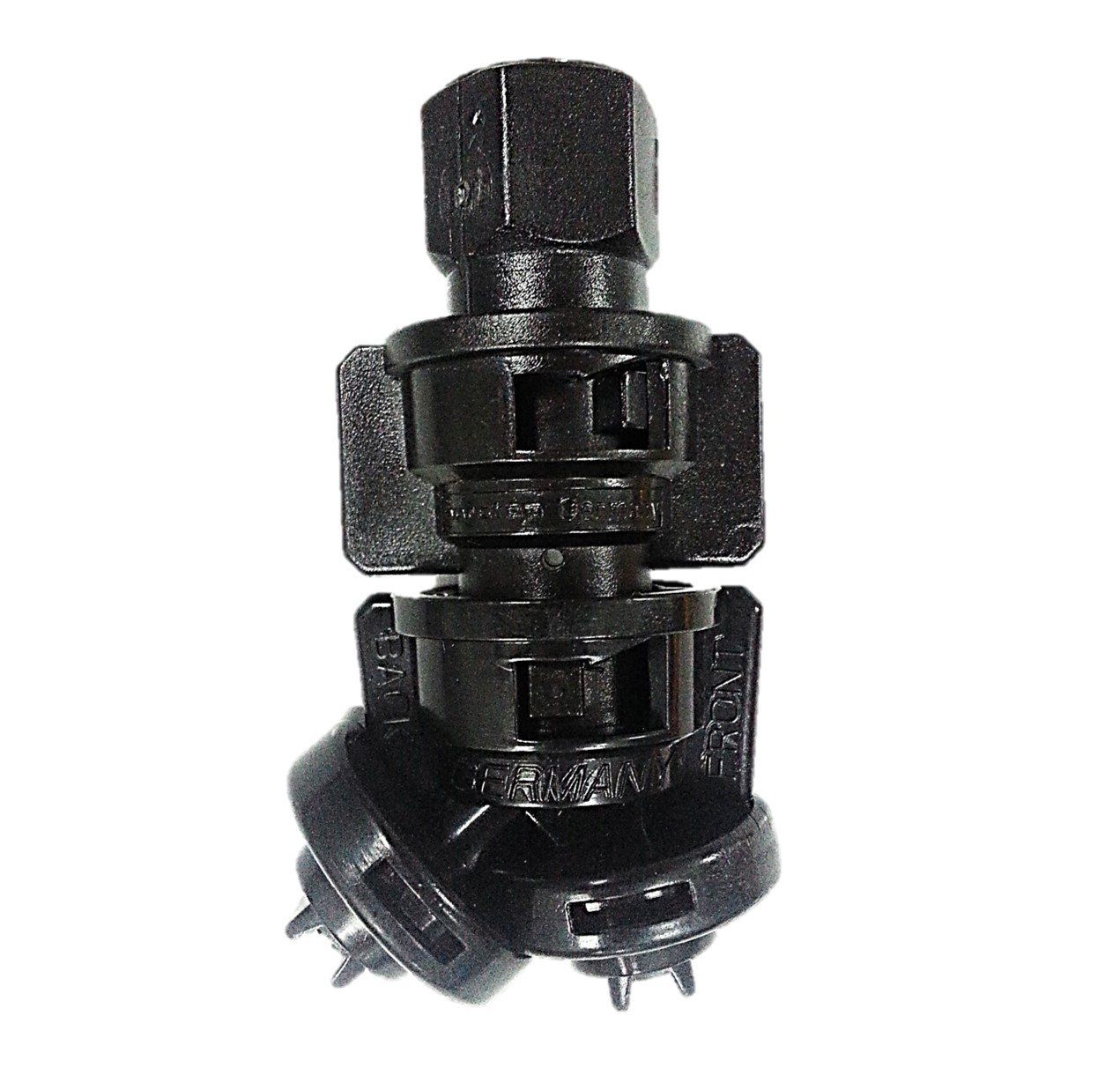

TurboDrop TD-ADF 110-10 is an ideal design device for Tractor Mounted & Drone Spraying. Asymmetric ADF- double Flat Fan cap allows assembling two individual nozzles at different angles in only one cap. This offers the possibility of combining different nozzle types, sizes, or spray patterns for one application. The asymmetric orientation of the two tips allows individual adjustments or alternating positioning of the nozzle tips, offering a wide range of solutions for difficult spray tasks. It can use to adapt AirMix Fan, AirMix Hollow Cone, Standard Fan, Even Fan & other nozzles to meet user's spraying requirements.

• Short, compact design made from hard-wearing plastic POM.
• Slimmer than other comparable double flat fan nozzles.
• Separates slides for each nozzle to allow the individual exchange of each nozzle tip, easy to clean.
• Nozzles are placed in a 10-degree / 50-degree Orientation, this combination of spray patterns has been successfully proven by the TurboDrop HiSpeed nozzles.
• Good drift control and excellent coverage of vertical and angular targets.
• Optimum pressure: 2 - 4 bar
• Application speeds from 6 - 15 km/h or more.

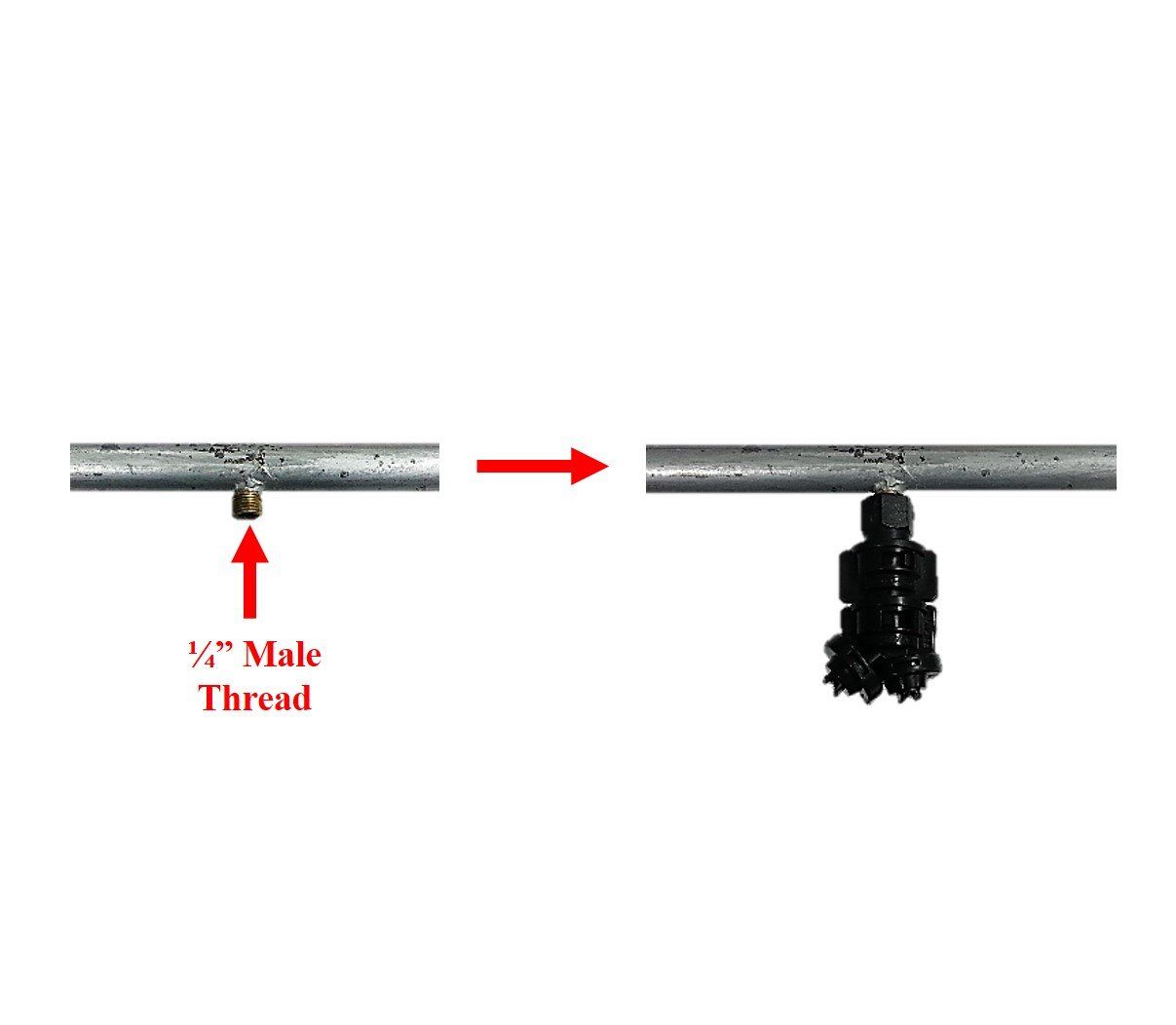

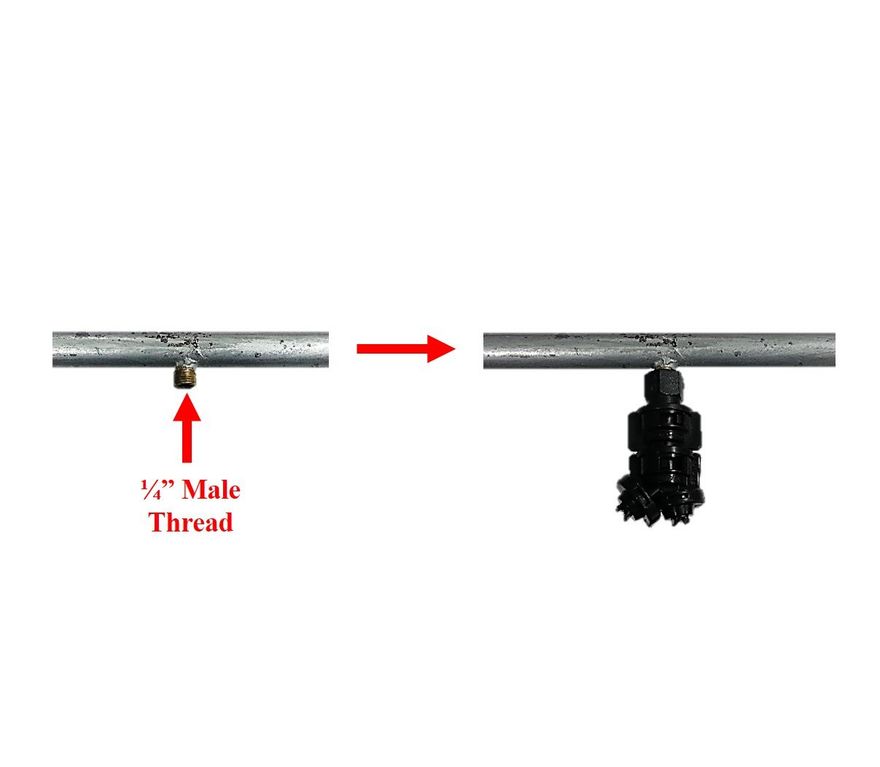

• Fits on all nozzle holders with standard bayonet system.
