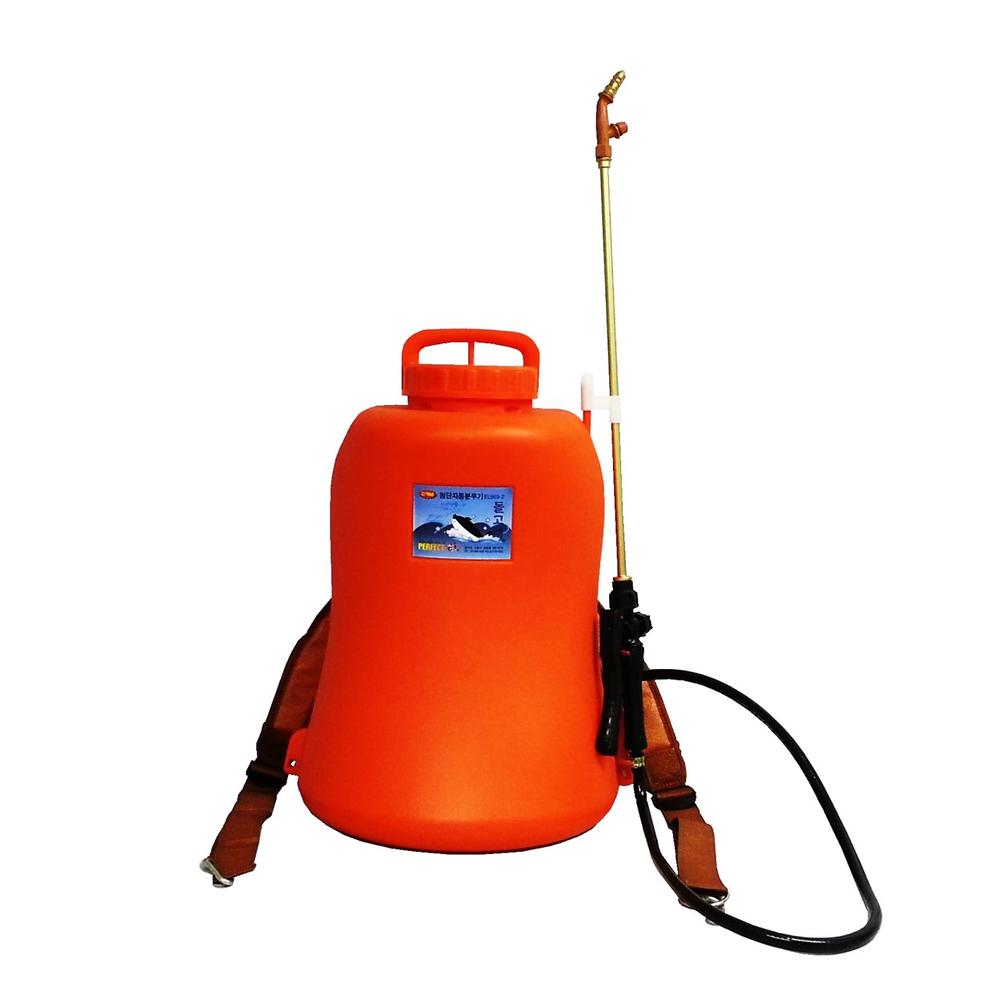

IEK-EL969 Lithium-Ion Battery Knapsack Sprayer

Brand:
EL969
Brand:
EL969
Product Code:
IEK-EL969-15L / IEK-EL969-20L
Product Code:
IEK-EL969-15L / IEK-EL969-20L
Tank Capacity:
15 Liter / 20 Liter
Tank Capacity:
15 Liter / 20 Liter

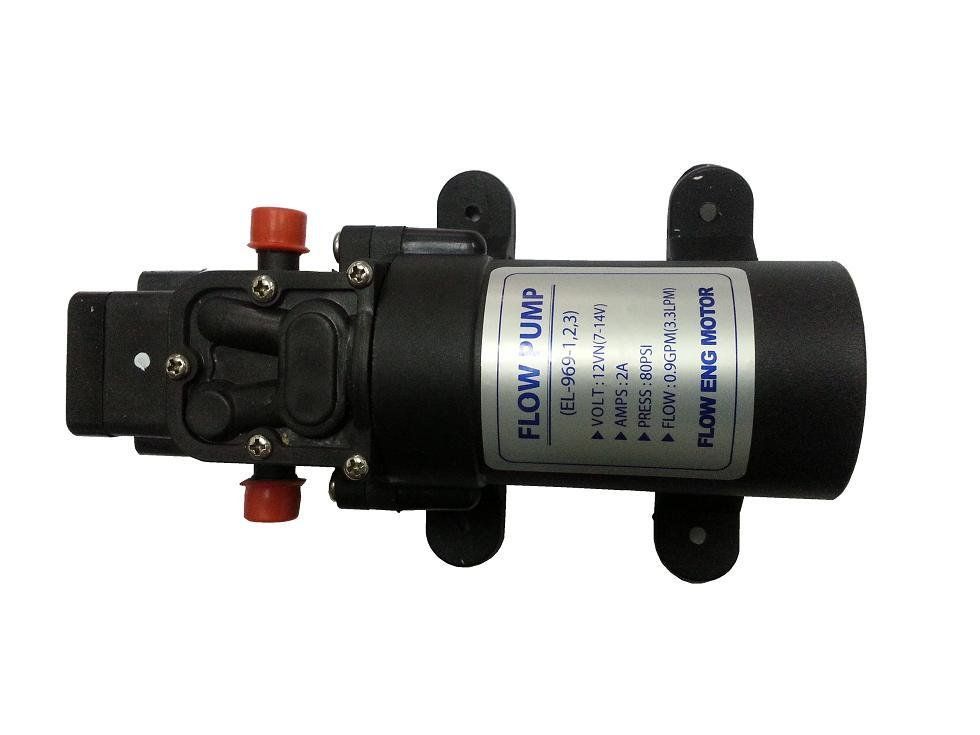

Pump Type:
Teflon Diaphragm Pump [12V (7V-14V), 2A]
Pump Type:
Teflon Diaphragm Pump [12V (7V-14V), 2A]

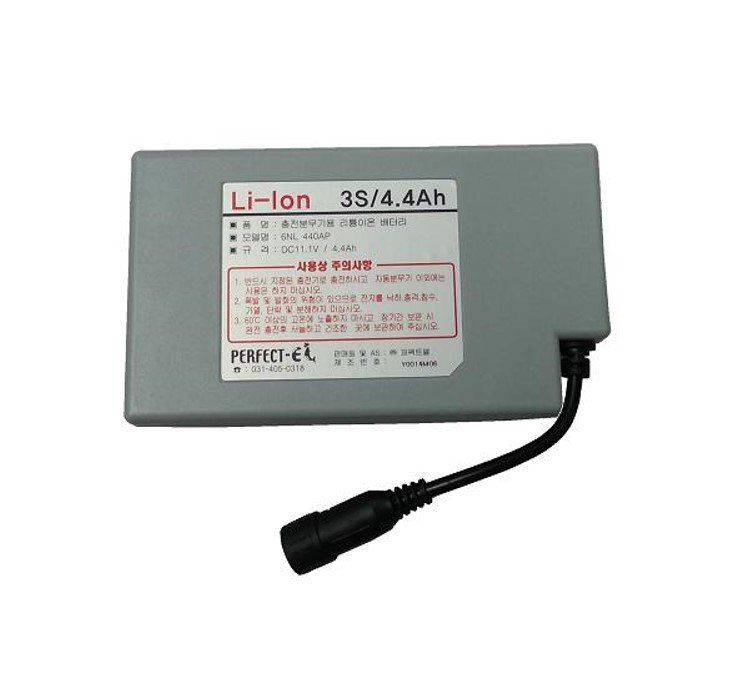

Battery Type:
Lithium-Ion, 11.1V, 4.4AH
Battery Type:
Lithium-Ion, 11.1V, 4.4AH
Input Power:
100 - 240V, 50 - 60 Hz, 0.5A
Input Power:
100 - 240V, 50 - 60 Hz, 0.5A
Output Power:
12.6V, 1.2A
Output Power:
12.6V, 1.2A
Charging Time:
4 - 5 Hours
Charging Time:
4 - 5 Hours
Rechargeable:
> 500 Times
Rechargeable:
> 500 Times
Working Hour:
4 - 7 Hours
Working Hour:
4 - 7 Hours
Shut-Up Pressure:
4 - 5.5 kg/cm²
Shut-Up Pressure:
5.5 kg/cm²
Working Pressure:
20 psi (Low), 30 psi (High)
Working Pressure:
20 psi (Low), 30 psi (High)
Nozzle Flow Rate:
1.18 L/Min (Low), 1.45 L/Min (High)
Nozzle Flow Rate:
1.18 L/Min (Low), 1.45 L/Min (High)
Net Weight:
4.00 kg (15L) / 5.00 kg (20L)
Product Origin:
Korea
Place of Origin:
Korea
Net Weight:
4.00 kg (15L) / 5.00 kg (20L)
DESCRIPTION
Share:
DESCRIPTION
DESCRIPTION
High-Tech Perfect EL969 Battery Operated Knapsack Sprayer with Rechargeable Lithium-Ion Powerful Battery. Light weight with big tank, simple and useful for the spraying of Insecticides, Fungicides & Herbicides and more require Sophisticated spraying media (Low Volume Spray to High Volume Spray).

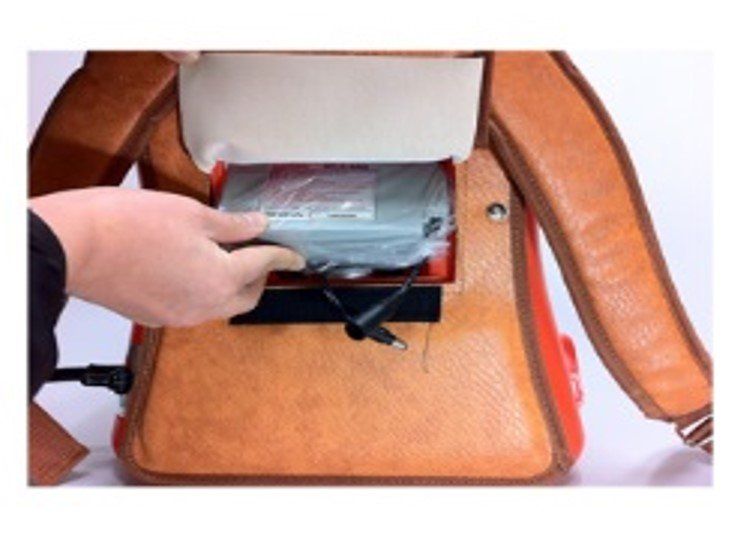

  • Lightweight and Simple to use. Only take out the battery and charge the battery alone. No need charge the battery together with the sprayer tank.
  • Hand free for pumping to create pressure and save worker energy.
  • Useful for complicated spraying job.
  • It can easily help users to improve the spraying quality and increase their spraying productivity up to 30%–40% due to the light and convenience operation.
Features

SUITABLE NOZZLES FOR IEK-EL969 (OPTIONAL)

OPERATING INSTRUCTIONS

MAINTENANCE GUIDES



  1. About the chemicals use - Please follow the instructions before you spray the agricultural chemicals. Thinners, solvents and petrochemical solvents can not be used. The lid-strainer should be used for preventing water pump jam by particles such as sands and any sediments.
  2. For using sprayer - After spraying, the user should ensure that the pesticide does not be left in the tank then fill with clean water and switch on the power to spray the clean water at least for two minutes from the suction strainer to the nozzle as cleaning purpose. After finishing spraying, the user is recommended to disconnect the battery from the sprayer. Please not overcharge the battery and expose it to the sunlight directly for preventing an explosion. Users should use the given lithium-ion charger for charging the battery to prevent explosion and shorten battery life significantly.
  3. Safety and attention - The instructions will guide the user’s on the safety and the convenience of using the Rechargeable Backpack Sprayer. Please follow the instructions to prevent harm to the body and give the product life longer. Personal protective equipment is highly recommended to be used for safety and health. For example, masks and gloves.
  4. Battery and charger - This battery is composed of lithium-ion cells. Keep the charging battery in a dry and lower humidity environment. The power range of the charger is AC 100~240V. The green lamp is on when the charger is connected from the socket-outlet without a battery. Moreover, the red lamp is on while the battery is being charged. After fully charged (charging time is about 3~4 hours), the green lamp will be on and the user has to disconnect the battery from the charger.



CAUTIONS

1. Safety and Attention
  • The instructions will guide the user’s for safety and the convenience in using the Rechargeable Backpack Sprayer. Please follow the instructions to prevent harmful for body and give the product life longer.
  • The personal protective equipment is highly recommended to be used for safety and healthy. For example, mask and gloves.
2. Battery and Charger
  • This battery is composed of lithium-ion cells.
  • Keep the charging battery in dry and lower humidity environment.
  • The power range of the charger is AC 100~240V
  • The green lamp is on when the charger is connected from socket-outlet without battery. Moreover, the red lamp is on while the battery is being charged. After fully charged (charging time is about 3~4 hours), the green lamp will on and user has to disconnect the battery from charger.

REPLACEMENT PARTS LISTS
