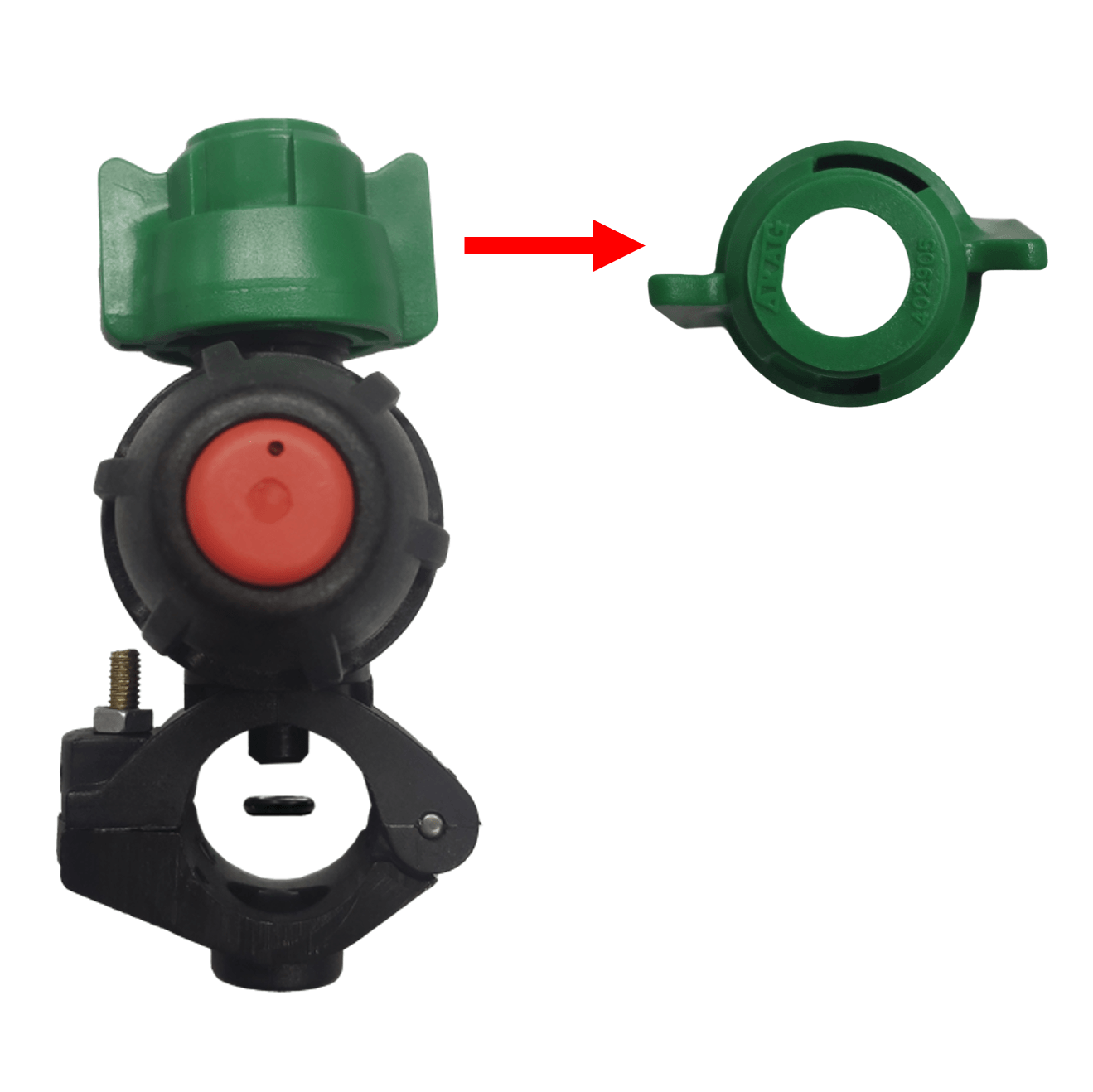

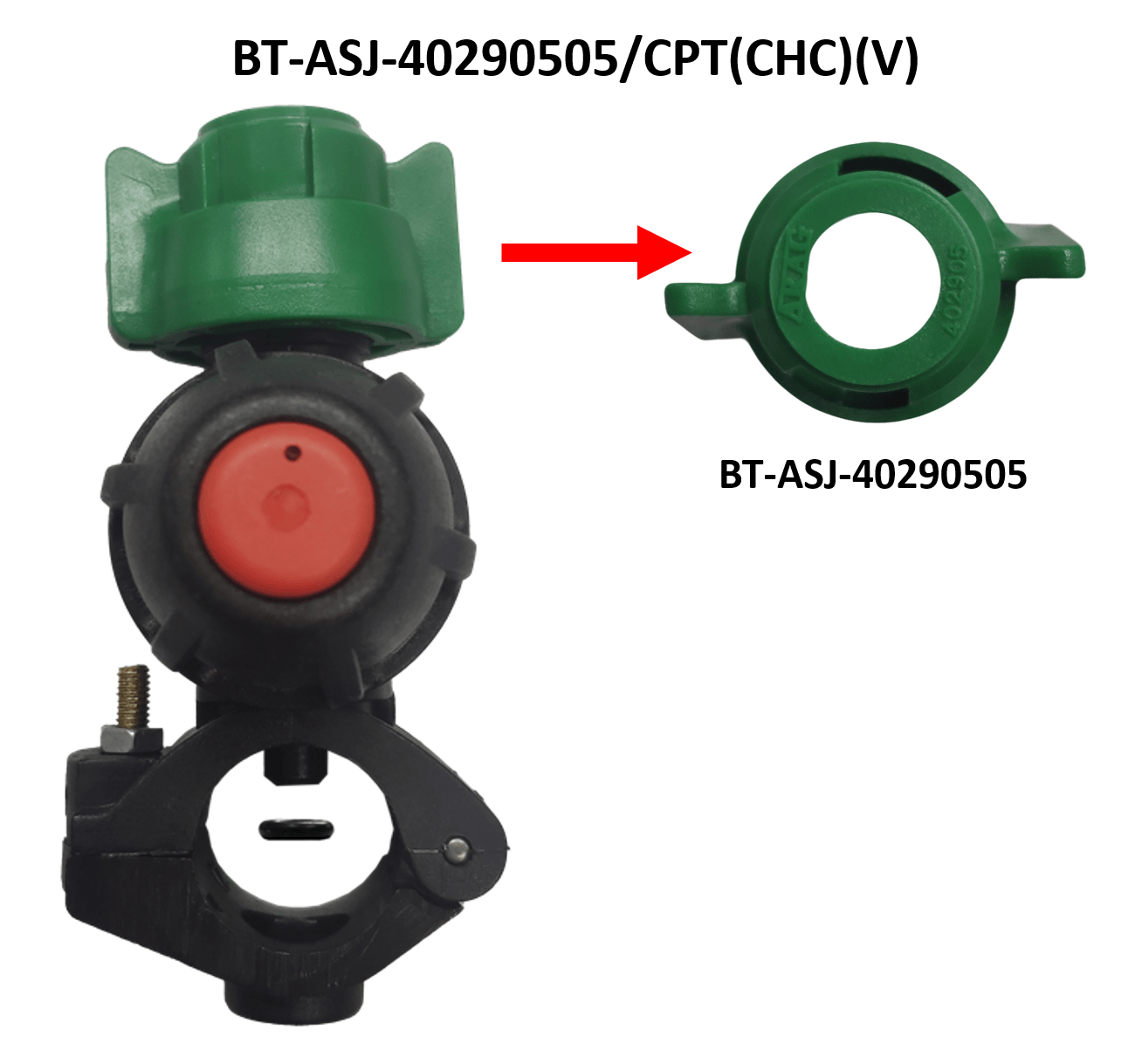

BT-ASJ-40290505/CPT(CHC)(V) with Diaphragm Check Valve is an ideal design device for Tractor Mounted & Drone Spraying. The Diaphragm Check Valve allows flow in one direction and automatically prevents back flow (reverse flow) when fluid in the line reverses direction. The Bayonet Cap can use to adapt Albuz Atr Ceramic Hollow Cone Nozzle. BT-ASJ-40290505 is a Bayonet Cap for quick fitting for the nozzle.

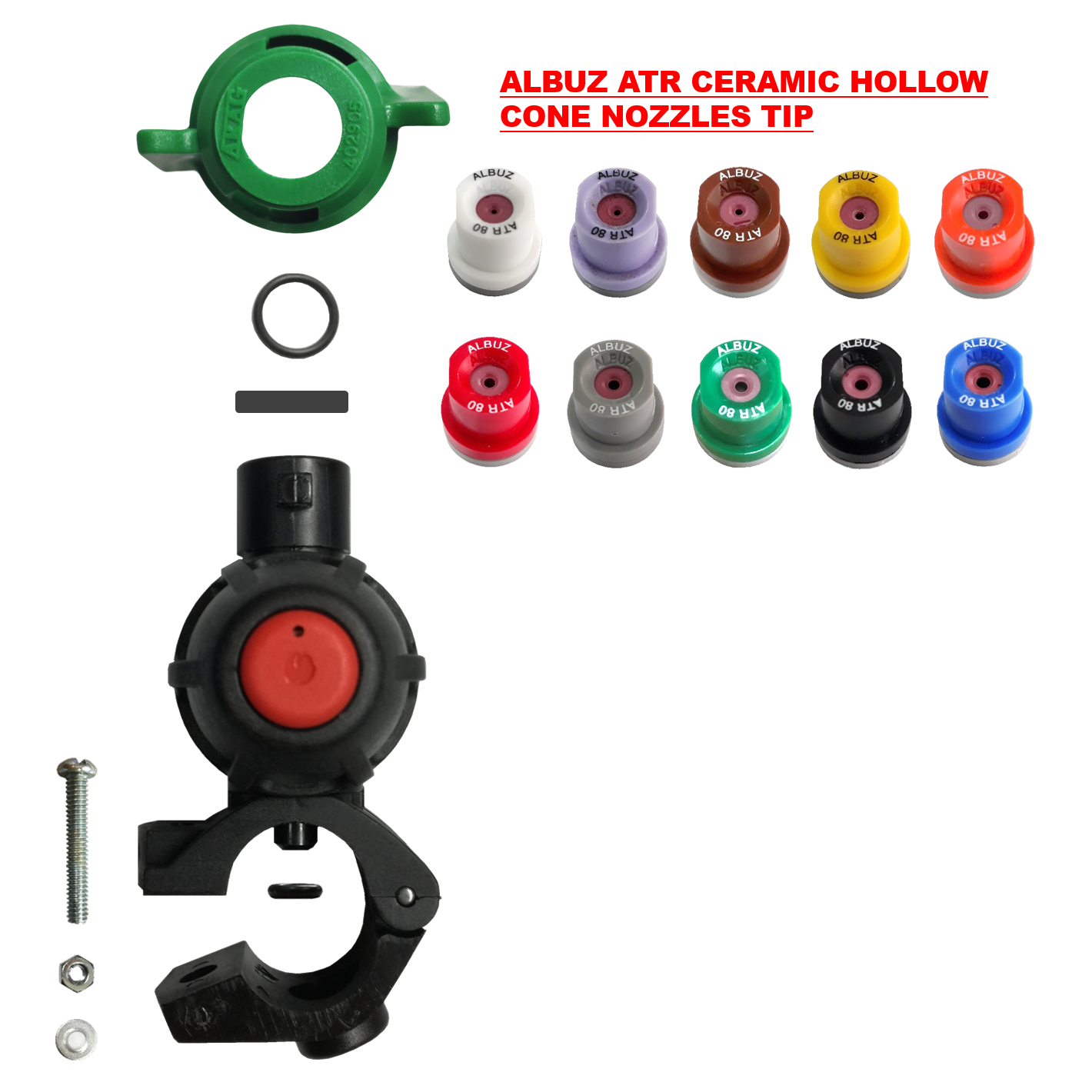

• ½” hinged Clamp type nozzle holder with Check Valve & quick coupling complete with Standard Bayonet Caps for quick fitting for Albuz Atr Ceramic Hollow Cone nozzle.
• The Diaphragm Check Valve allows flow in one direction and automatically prevents back flow (reverse flow).
• Reduce or control dripping from the nozzle tip once spraying operation stop to save wastage of expensive chemicals and protect your crops.

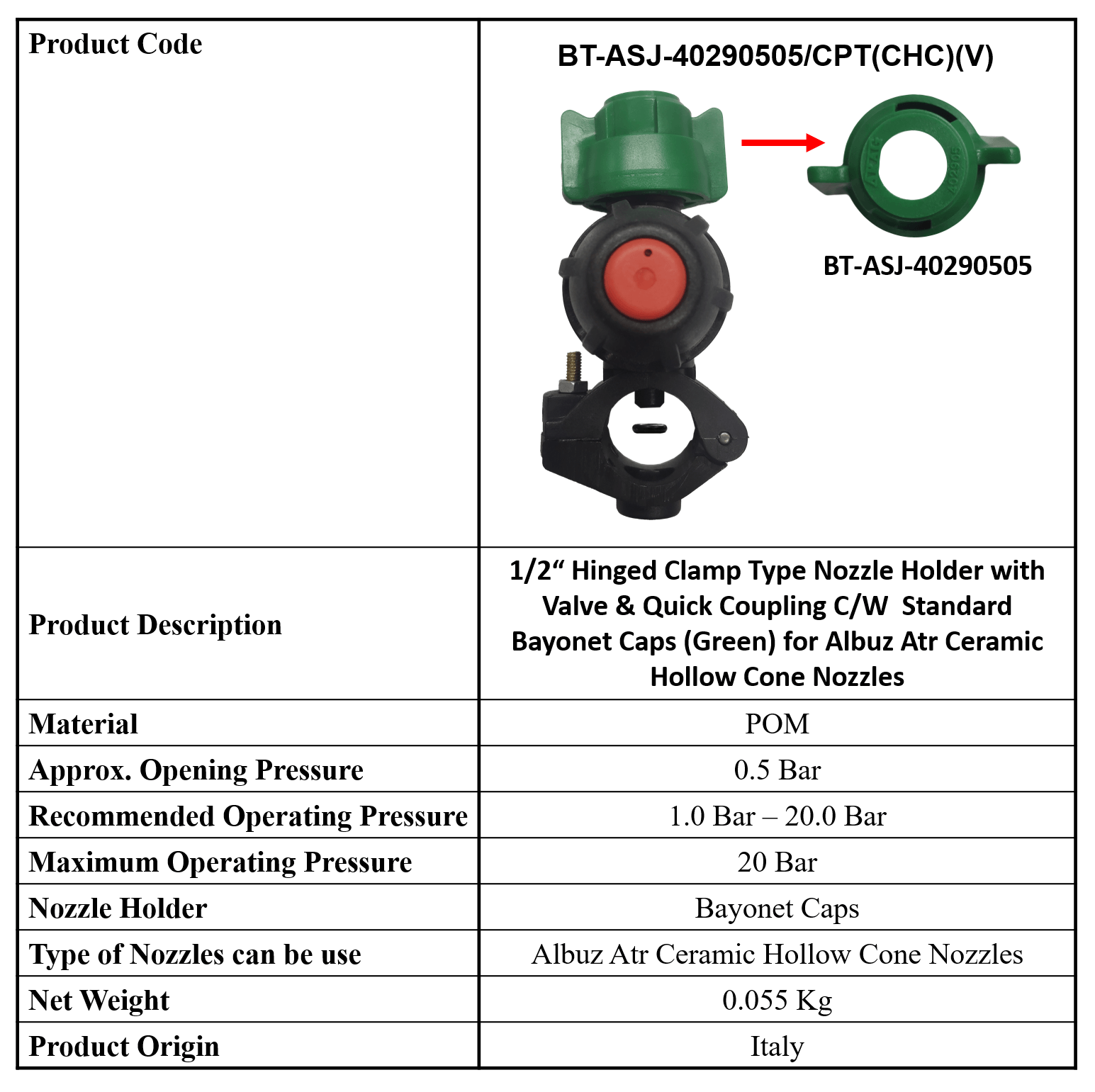

• Recommended operating pressure 1.0 Bar – 20.0 Bar
• Can use up to maximum pressure 20 Bar.
• The seal can be compressed by moving the bayonet system without exerting any substantial torsion force on the seal.
• The bayonet system can help prevent unintentional disengagement of the spray nozzle.
• Easy cleaning, disassembling, and assembling.
• Made from hard-wearing Polyacetal (POM), with high wear and shock resistance.
